Glsun 2x2ba Mechanical Optical Bypass Switch - China
price: 100.00 Dollar US$
Product Description

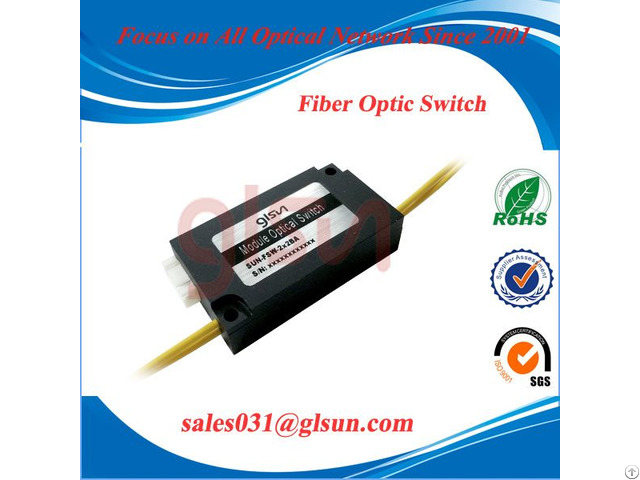

2x2BA Mechanical Optical Bypass Switch - Introduction
SUN-FSW-2×2BA Mechanical Optical Bypass Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0×(W)26.0×(H)10.0 mm.
It is an ideal component for OADM, OXC, system monitoring and protection.
With compact package, it can be easy to integrate into a high density optical communication system.
GLSUN fiber optic switches can be widely used in optical network protection, transmitter and receiver protection, network test system and instrumentations.
Features Applications
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
Detailed Images Specifications
2x2BA Mechanical Optical Bypass Switch - Specifications
Parameters
Unit
SUN-FSW-2×2BA
Wavelength Range
nm
1260 ~ 1650
Test Wavelength
nm
1310 / 1550
Insertion Loss 1, 2
dB
Typ: 0.8 Max: 1.0
Return Loss 1, 2
dB
≥ 50
Crosstalk 1
dB
≥ 55
PDL
dB
≤0.05
WDL
dB
≤0.25
Repeatability
dB
≤±0.02
Operating Voltage
V
3 or 5
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
-20 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Weight
g
25
Dimension
mm
(L)55.0×(W)26.0×(H)1 0.0 ±0.2
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 23, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
