Glsun 8 1 Fiber Optical Switch - China

price: 500.00 Dollar US$

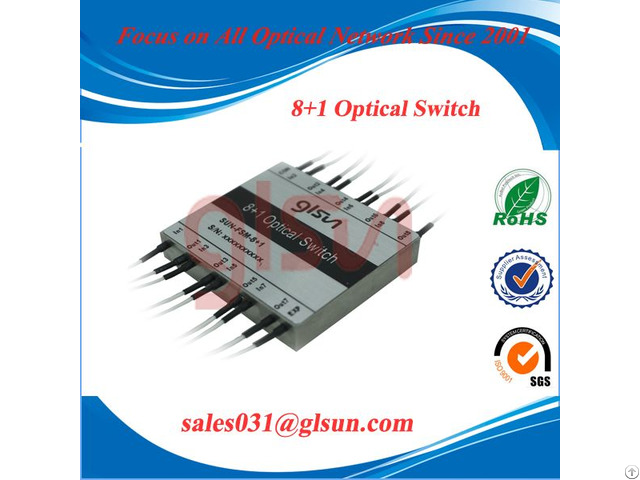

Glsun 8 1 Fiber Optical Switch

Products Photos Catalog Glsun Fiber Optical Photos Catalog

Features

·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching Applications

·R&D in Laboratory

·System Monitoring

·OADM

·MAN (Metropolitan Area Network) GLSUN 8+1 Fiber Optical Switch Specifications

Parameters Unit SUN-FSW-8+1

Wavelength Range nm 1260 ~ 1650

Test Wavelength nm 1310 / 1550

Insertion Loss 1, 2 dB ≤ 1.0

Return Loss 1, 2 dB ≥ 50

Crosstalk 1 dB ≥ 55

PDL dB ≤0.1

WDL dB ≤ 0.30

Repeatability dB ≤ ±0.02

Operating Voltage V 3.0 or 5.0

Durability Cycles ≥ 10 Million

Switching Time ms ≤ 8

Optical Power mW ≤ 500

Operating Temperature ℃ -20 ~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Dimension mm (L)51.8×(W)46.8×(H)9.7 ±0.2

Note: 1 Test at room temperature.

2 Excluding connectors.


Company Contact:


  • Phone: 18607731315

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China

  • Email: Email


Published date: April 24, 2018

  • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
