Glsun Mini Single Ended Fiber Optical Switch - China
price: 100.00 Dollar US$

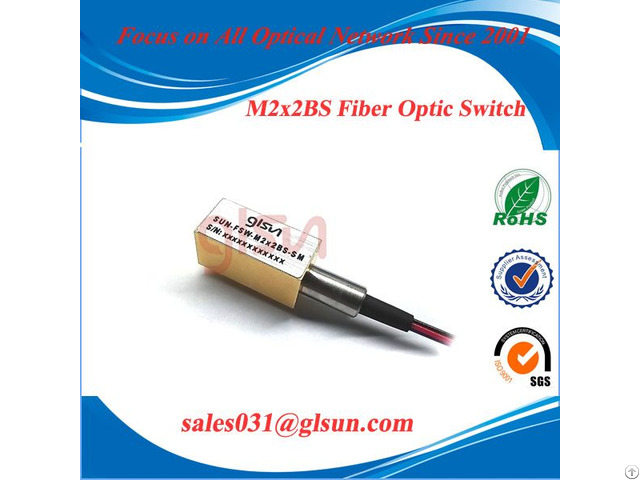

GLSUN Mini Single-end Fiber Optical Switch
Features ·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network) Specification
GLSUN Mini Single-end Fiber Optical Switch - Specification
Parameters
Unit
M1×1S or M1×2S or M2×2BS
Wavelength Range
nm
1260 ~ 1650
Test Wavelength
nm
1310 / 1550
Insertion Loss 1, 2
dB
M1×1S
Typ: 0.4 Max: 0.6
M1×2S or M2×2BS
Typ: 0.6 Max: 0.8
Return Loss 1, 2
dB
SM ≥ 50
Crosstalk 1
dB
SM ≥ 55
PDL
dB
≤0.05
WDL
dB
≤0.25
Repeatability
dB
≤±0.02
Operating Voltage
V
3V or 5V
Durability
Cycles
≥ 10 Million
Voltage Pulse Width
(Latching)
ms
≥ 20
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
-20~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Weight
g
13
Dimension
mm
(L )20×(W)9.5×(H)8.5 ±0.2
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 24, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
