Glsun Nanosecond Optical Switch - China

price: check with company for price

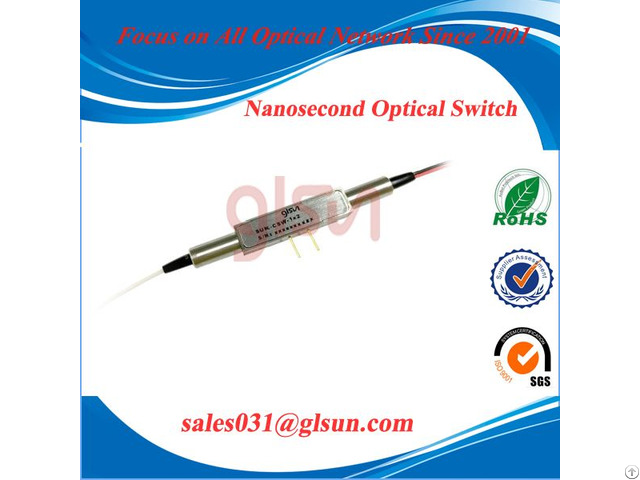

Glsun Nanosecond Optical Switch

Products Photos Catalog Glsun Nanosecond Photos Catalog

Features

High switching speed

Better durability

High reliability

Fail-safe latching Applications

Optical channel blocking

Configurable Add/Drop

System monitoring, Test&measurement

Fiber-optics sensing system Specifications

Parameters Unit 1x2

Wavelength Range nm 1260~1650

Test Wavelength nm 1310 / 1550

Insertion Loss dB 1.0

Return Loss dB ≥ 50

Crosstalk dB ≥ 20

PDL dB ≤ 0.35

Repeatability dB ≤ ±0.01

Switching Time ns ≤ 300

Repetition Rate KHz ≥ 5

Switching Type n/a Non-latching

Optical Power mW ≤ 300

Operating Temperature ℃ -5~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Dimension mm (L )29x(W)7.3x(H)6±0.2


Company Contact:


  • Phone: 18607731315

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China

  • Email: Email


Published date: April 25, 2018

  • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
