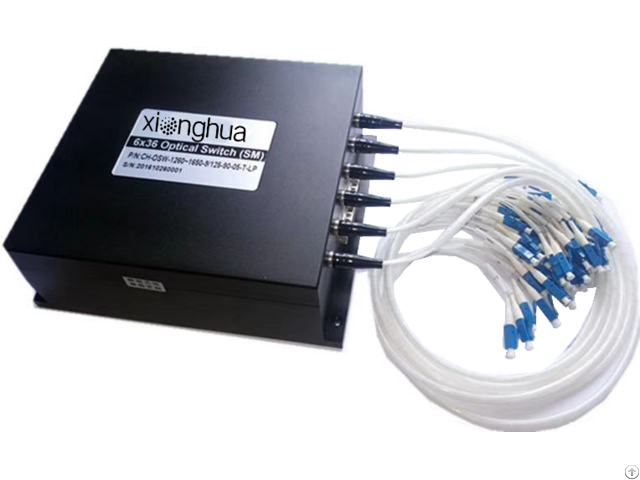

Matrix Optical Switch Mxn - China

Description: The matrix optical switch module is a kind of optical path control device, which can be arbitrarily interconnected among multiple groups of input ports and multiple groups of output ports.

Due to its advantages such as good environmental performance, it is mainly used in optical communication for cross-connection of backbone optical nodes, multi-dimensional online monitoring, etc.

Features: Low insertion loss Fast switching Support half-cross/full-cross customization Support input/output port power monitoring customization High stability and high reliability Parameter: Parameter: Unit Technical indicators Model XH-OSW-M*N Working wavelength nm 1260~1650 Insertion loss (1) 4*4 dB Typ≤1.6dB, Max≤2.1dB 8*8 dB Typ≤2.0dB, Max≤2.4dB 16*16 dB Typ≤2.5dB, Max≤3.0dB 32*32 dB Typ≤3.0dB, Max≤3.5dB Repeatability dB  0.05 dB Return loss dB ＞50dB Crosstalk dB ＞50dB Wavelength dependent loss dB  0.25 Polarization dependent loss dB  0.1 Switching time(Any channel) ms ＜30ms Lifetime Cycles ＞107 Optical power mW ≤500mW Maximum channel can be customized CH M≤64, N≤64 Powered by V 5.0 Power consumption W ＜10W Operating temperature ℃ -5~55 Storage temperature ℃ -20~70 Relative humidity % 5 ~ 95 Dimension(2) mm 4*4：100*100*18 8*8：180*150*28 Remark：(1)Tested within operating temperature range and without connectors.

(2)Support size customization Others: support communication mode customization.
