Rs232 Rs485 Serial Device Servers - China

　　This is a serial RS232 / RS485 to Ethernet server, used for data transparent transmission.

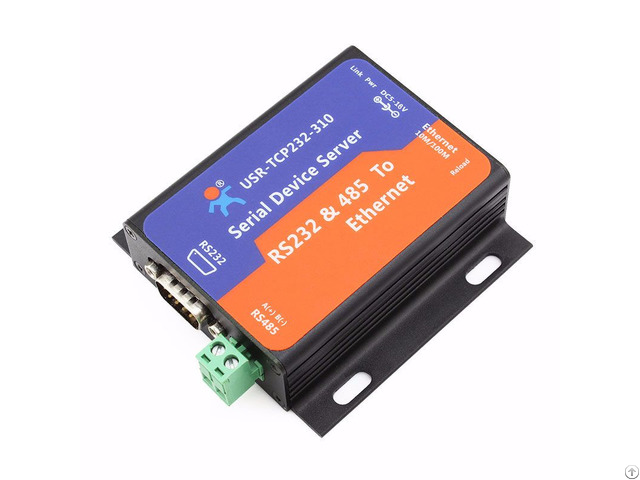

USR-TCP232-310 is a low-cost serial device server, whose function is to realize bidirectional transparent transmission between RS232 / RS485 and Ethernet.

You can apply USR-TCP232-310 to your products to realize networking communication.

User can directly process data interaction through network and device to realize remote data acquisition, remote control and management.

USR-TCP232-310 also owns additional functions such as DHCP, DNS, built-in webpages and network upgrades.

　　-Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol

　　-Support DNS function

　　-Set parameters through webpage

　　-Upgrade firmware via network

　　-Auto-MDI/MDIX, RJ45 port with 10/100Mbps

　　-Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space

　　-Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client

　　-Support virtual serial port and provide corresponding software USR-VCOM

　　-Heartbeat package mechanism to ensure connection is reliable, put an end to dead link

　　-User-defined registration package mechanism, check connection status and use as custom packet header

　　-Under TCP Server mode, Client number ranges from 1 to 16; default number is 4

　　-The global unique MAC address bought from IEEE, user can define MAC address

　　-Restore factory default

　　-Across the gateway, switches, routers

　　-Can work in LAN, also can work in the Internet (external network)

　　-Provide PC TCP/IP socket programming example such as VB, C++, Delphi, Android and IOS

　　-Support customization
