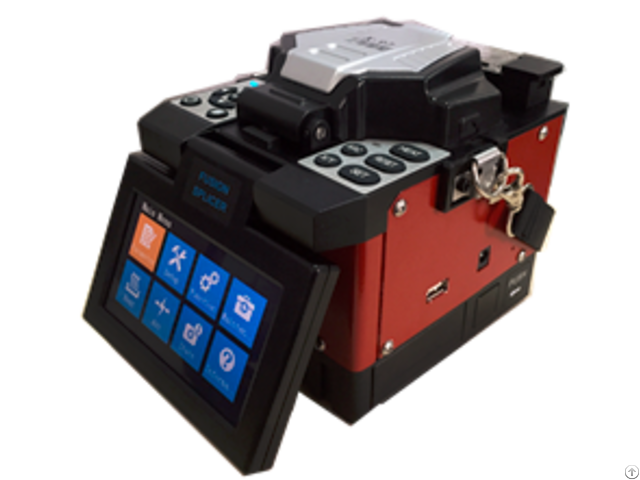

  • Smart Ftth Fusion Splicer X 97 - China

    price: 2000.00 Dollar US$

    Applicable fiber SM(G.

    652), MM(G.

    651), DS(G.

    653), NZDS(G.

    655), others(including G.

    657)

    Fiber count Single

    Applicable fiber dimensions Cladding diameter: 80 -150μm, Coating diameter: 160 -900μm

    Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

    Return loss >60db

    Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )

    Splicing program 40 groups

    Operate mode Manual, Automatic

    Auto-heating Available

    Typical splicing time 8 seconds

    Tube heating time 26 seconds for 60mm and 40mm shrinkable sleeves

    Fiber view magnification 250X(X or Y view), 125X(X and Y view)

    Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor

    Storage of splice result 4000 results

    Loss evaluation Available

    Tension test 1.8-2.2N

    Interface GUI menu interface, easier operation

    Battery capacity 5800mAh, typical 180 cycles(splice and tube heat), pluggable inner Li-battery

    Power supply Adaptor, input: AC100-240V(50/60HZ)

    Electrode life More than 4000 ARC discharges, can be replaced conveniently

    Terminals USB 2.0 port, for uploading splice results and upgrading software

    Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s

    Dimension 149mm(L)x120mm(W)x127mm(H )

    Weight 1.9kg including battery


    Company Contact:


    • Phone: 021-56571083

    • Address: Room 1307-1309, No.525 Chengyin Road, Baoshan District, Shanghai , Shanghai , China

    • Email: Email


    Published date: June 23, 2017

    • Business Description: Shanghai Shinho Fiber Communication Co., Ltd is a professional OEM manufacturer of fiber optic fusion splicers.

      Besides, Shinho could also supply other related test equipment, like palm OTDRs, power meters, VFLs, light sources, fiber identifiers, toolkits, cleavers, etc.

      They are widely used in the field of Telecom, Unicom, Mobile, Railway, Petrochemical, Coal Mine, Science and Research Institutes, Home Network, etc.

      Shinho X-series of optical fiber fusion splicers have Independent Intelligent Property Right (IIPR).

      They have advanced functions and stable performance, and their splicing loss could reach the top level in the world.

      After several years development, Shinho products are broadly acknowledged and trusted by different clients around the world, like USA, South America, Russia, India, Pakistan, Europe, Middle East, South Africa, etc.

      Holding the principle of Quality, Innovation and Service, Shinho would keep researching and developing the top level fiber optic fusion splicers, providing the excellent and quick service to our customers.

      Based on years of experience in optical communication fields, Shinho hereby sincerely welcome domestic and international friends to come and visit our factory for business cooperation.
