40gbase Sr4 850nm Mmf 150m Dom Qsfp Optical Transceiver - China

price: 46.90 Dollar US$

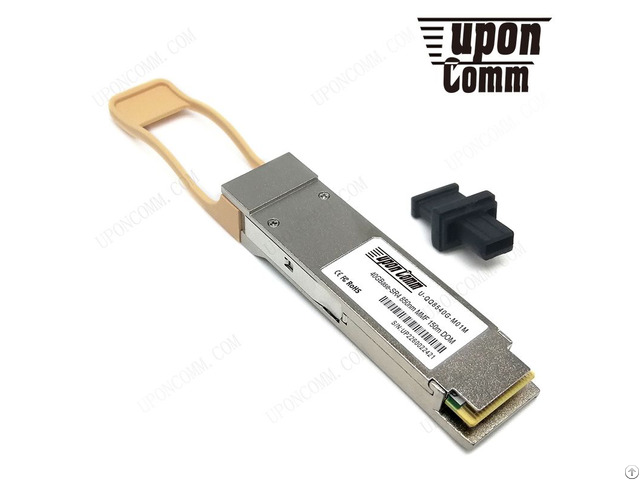

40gbase Sr4 850nm Mmf 150m Dom Qsfp Optical Transceiver

Products Photos Catalog 40gbase Sr4 850nm Mmf Photos Catalog

Cost-effective Quad Small Form-Factor Pluggable (QSFP) transceivers for 40 Gigabit Ethernet applications Product overview UPONCOMM offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.

UPONCOMM 40GBASE-SR4 QSFP Modules support link lengths of 100 meters and 150 meters, respectively, on laser-optimized OM3 and OM4 multimode fibers.

It primarily enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber female connectors.

It can also be used in a 4x10G breakout mode for interoperability QSFP-40G-SR4 is optimized to guarantee interoperability with any IEEE 40GBASE-SR4 and 10GBASE-SR (in 4x10G mode).

Key PrameterSpeed40GBase-SR4W avelength850nmDistance150 mInterfaceMTP/MPODOM SupportYESMediaMMFOptical ComponetsVCSEL/PINTX Power-7.6~2.4dBmRX Power< -5.4dBmForm FactorQSFP+Protocols40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA CompliantTemperature Range0 to 70℃ (32 to 158℉)


Company Contact:


  • Phone: 13049887299

  • Address: Shenzhen china, Shenzhen , Sehenzhen , China

  • Email: Email


Published date: November 19, 2019

  • Business Description: UPONCOMM Is Fiber Optical transceivers And Industrial Media Converter Switch Products Telecommunication Data Center
