5ghz Mimo Outdoor Sector Antenna - China

price: 58.50 Dollar US$

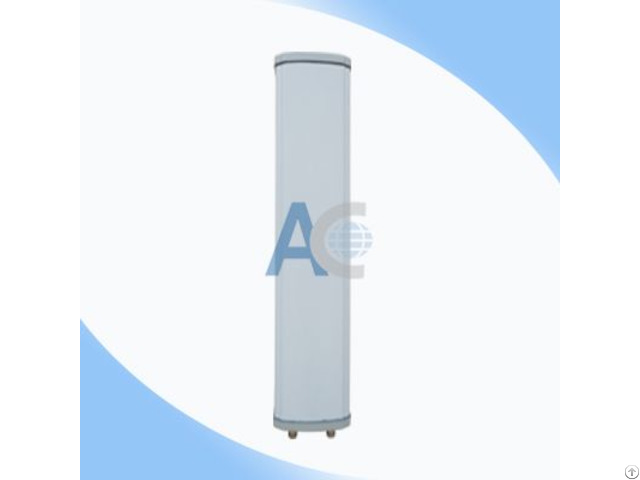

5ghz Mimo Outdoor Sector Antenna

Products Photos Catalog 5ghz Mimo Outdoor Photos Catalog

Electrical Frequency Range 4950-5850MHz

Band width 900MHz

F/B Ratio ≥20dB

Gain 2x20dBi

V.S.W.

R <1.5Type;Max 2.0

Radiation Direction

Horizontal Beam width 90°

Vertical Beam width 4°

Polarization Vertical and Horizontal

Lightning Protection DC-Grounded

Maximum Input Power 100W

Impedance 50Ώ

Connector 2XN Female

Antenna Radome Material PVC

Mount way Pole

Diameter of Installation Pole Ø30~Ø50mm

Mechanical Dimensions 725x120x60mm

Weight 3KG

Operating Temperature -40℃ to+80℃

Rated Wind Velocity 60m/s

RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: June 28, 2017

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
