Hart Communication Controller - China
price: contact company for price
1 - Brief Introduction

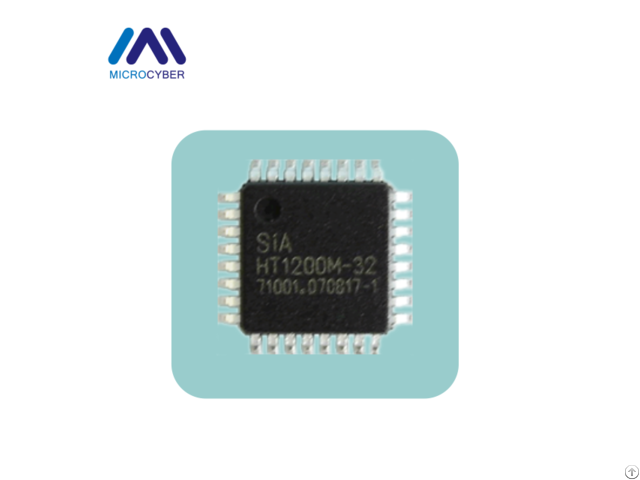

As the modulation and demodulation controller with low power consumption, HT1200M is used for developing HART products and good at performance, cost and quality etc.
HT1200M is compatible with HT20C15 and SYM20C15 - 2 - Main Characteristic
Single chip
FSK modem (Semi-duplex 1200b/s)
Integrates circuit of receiving band-pass filter with circuit of sending signal waveform and reshaping
External connection with 460.8kHz crystal or ceramic filter
Internal clock vibrator or external clock input
Operation temperature: -40 centigrade~85 centigrade
Voltage: 3.3V~5.0V
Operation current: <200uA
LQFP32 and PLCC28 package
Company Contact:
- Posted By: Microcyber Corporation
- Phone: 862431217280
- Address: 17-8 Wensu Street, Hunnan New District, Shenyang , Liaoning , China
- Email:
Published date: September 28, 2019 - Modified date: October 15, 2019
- Business Description: Based on fieldbus technology, we are professionally engaged in R&D, manufacturing, sales and engineering service of communication stack, communication controller, customized communication board (FF H1, PROFIBUS PA and HART), control configuration software, control system, pressure transmitter with capacitance sensor or piezoresistance silicon sensor (FF H1, PROFIBUS PA and HART), temperature transmitter (FF H1, PROFIBUS PA and HART) and F/I & I/F converter, etc.
