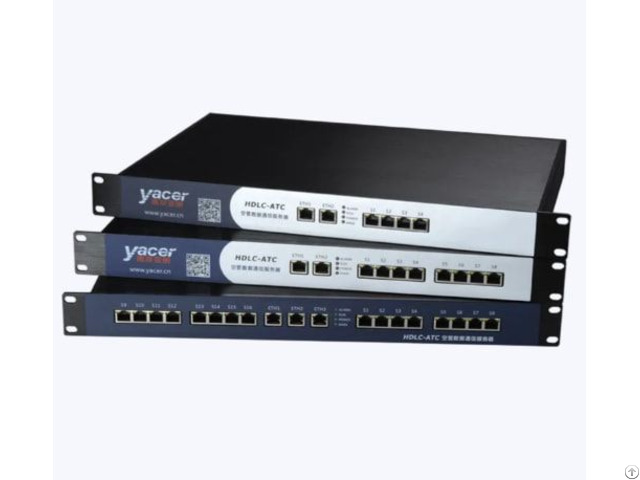

HDLC-ATC Surveillance Data Communication Server

2, 3, 4x Ethernet interfaces

4, 8, 16x synchronous HDLC serial ports, supports asynchronous UART

Synchronous/Asynchrono us serial port to Ethernet interface conversion

HDLC to UDP protocol conversion

1U, 19-inch standard rack-mountable chassis

Supports dual redundant power supplies

Low-power, fanless design Introduction

Yacer HDLC-ATC Air Traffic Control Data Communication Server is a high-performance protocol conversion device designed specifically for the air traffic control (ATC) field.

It provides 2/3/4 Ethernet ports and 4/8/16 synchronous HDLC serial ports, supporting bidirectional interface conversion between serial ports and Ethernet, as well as protocol conversion between HDLC and UDP.

The device reliably receives and transmits ATC surveillance data, supporting two typical application scenarios: first, it is used for multi-channel radar signal access in ATC automation systems and surveillance systems; second, it provides synchronous serial port output support for surveillance data from equipment such as Primary Surveillance Radar (PSR), Secondary Surveillance Radar (SSR), and ADS-B receivers.

Housed in a 1U, 19-inch standard rack-mountable chassis, the product features a low-power, fanless design, ensuring high reliability and silent operation.

The dual redundant power supplies further enhance system stability, fully meeting the high demands of ATC scenario for long-term, continuous equipment operation.

Applications

Air Traffic Control (ATC)

Serial-to-Ethernet Conversion & HDLC-to-UDP Conversion

Synchronous serial output of target reports from PSR, SSR, ADS-B and other devices

Radar signal access for ATC automation systems and surveillance systems

Recording and playback of ATC radar data

Bridging and remote transmission of ATC surveillance data
