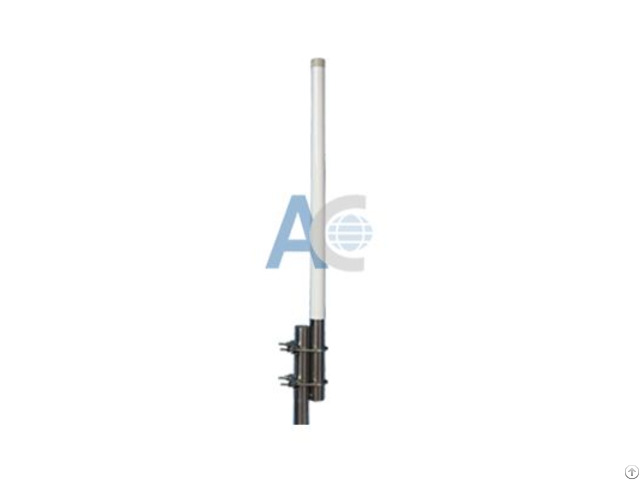

Rfid 869mhz Omni Outdoor 6dbi Antenna - China
price: 38.50 Dollar US$
Electrical Frequency Range 869MHz
Band width 3MHz
Gain 6dBi
V.S.W.
R ≤1.5
Radiation Omni-Direction
Horizontal Beam width 360°
Vertical Beam width 16°
Polarization Vertical Lightning Protection DC Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N Female
Antenna Radome Material Fiberglass
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm Mechanical Dimensions Φ38x1000mm Weight 2.3KG
Operating Temperature -40℃ to+80℃
Rated Wind Velocity 241km/h
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: October 15, 2018
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
