Wifi Gps Gsm 5 In 1 Combination Screw Mounting Antenna - China

price: 30.00 Dollar US$

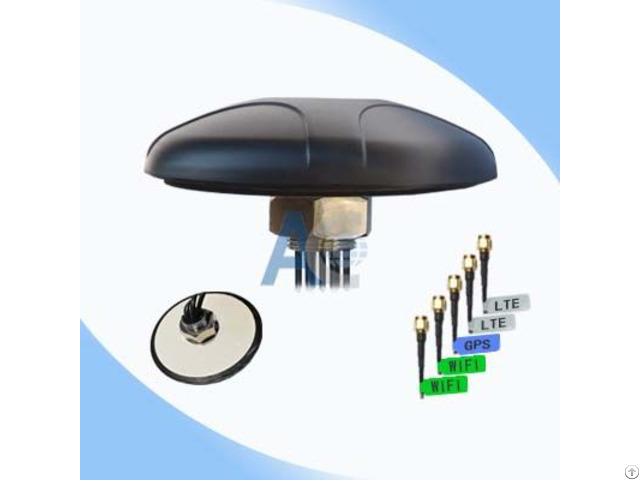

Wifi Gps Gsm 5 In 1 Combination Screw Mounting Antenna

Products Photos Catalog Wifi Gps Gsm Screw Photos Catalog

Electrical GPS part: Operating Frequency 1575.42MHz

Band width ±5 MHz

Gain 28±2dB Typical V.S.W.

R ＜2.0

Polarization RHCP

Radiation Omni

Maximum Input Power 50W

Impedance 50Ώ

Noise Figure 1.5dB

DC Voltage 2.2-5.0V

DC current 5-15mA

Antenna Radome Material ABS

LTE Part: Frequency range 698-960/1710-2700MHZ.

VSWR 2.0: 1

Gain 3dBix2

Polarization Linear

Impedance 50Ω

WIFI Part: Frequency range 2.4/5GHZ

V.S.W.

R 2.5

Gain 3dBi*2

Polarization Linear

Impendance 50Ω

Mechanical Mounting Method Screw

Housing Black

Cable RG316/RG178/RG174

Length 3M(can be customization)*5

Connector SMA Male(can be customization)

Operating Temperature -40°C~+85°C

Humidity 55%-75%RH

Waterproof IP67

Humidity 95%~100%RH

Antenna Dimension Ф143.6×65 mm

Weight 1.2KG


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: May 26, 2017

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
