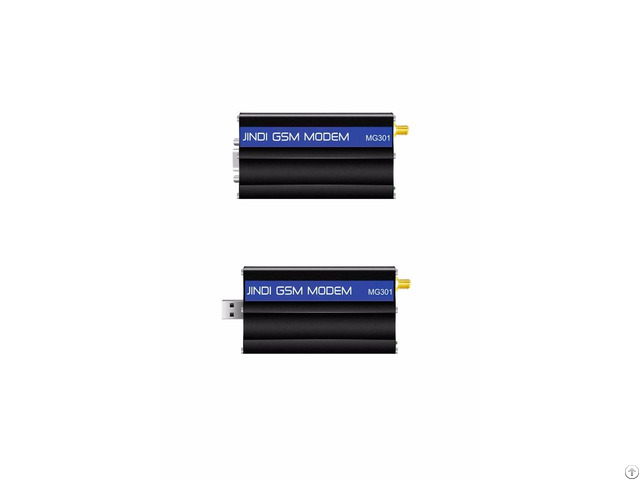

Jindi Rs232 Usb Quad Band Gsm Gprs Modem Mg301 - China

Technical Specification

Product Model： JINDI GSM MODEM MG301

Working Frequency： Support GSM quad-band

GSM/GPRS：850 MHz/900 MHz/1800 MHz/1900 MHz

Origin： Chip: HUAWEI MG301, Power supply, Data cable, Antenna: China

Input Voltage： 5V－16V

Input Current： 5mA standby, 140mA 12V phone state?GSM900MHz

5mA standby, 100mA 12V phone state GSM1800/1900MHz

Working Temperature： Normal working temperature：－20℃－ +70℃

Limit working temperature：－40℃－ +85℃

Storage Temperature： －40℃－+85℃

Product Size： GSM Modem：10CM×5CM×2CM


Carton Size：22CM×15.5CM×5.5C M

Net Weight： 130g

Data, Fax, Voice and Messaging function

Application: control GSM Modem receiving and sending SMS through RS232 or USB interface on a computer or a single chip.

· Voice function call emergency call speech coder and decoder: full rate, enhanced full rate and half rate (FR/EFR/HR) dual tone multiple frequency function (DTMF)

· Data/fax function asynchronous data circuit, transparent and opaque data to the highest standards 14400 bits/s the third type of automatic fax machine (Class1 and Class2) MNP2, V42bis

· Messaging function text and PDU point-to-point (MT/MO) cell broadcast GSM Additional Functions

· call transfer

· call barring

· MPTY

· call waiting and call holding

· caller ID

· call charge prompt

· unstructured supplementary service data(USSD)

· closed user group

· show call transfer Other Functions

· open software platform(support the embedded systems of user application)

· ME＋SIM address book management

· fixed dialing

· SIM card value-added services Class2

· SIM card, card locked function of network and service provider

· real time clock

· alarm manager

· XMODEM protocol software upgrading

· support the text UCS2

Available accessories (for RS232)：Power Supply *1; RS232 Data Cable *1; Antenna *1

Available accessories (for USB)：USB Data Cable *1; Antenna *1
