Cat5e Cat6 Green Orange Black Gray Red Ethernet Cable Lead Patch Cord - China

Cat5e Cat6 Green Orange Black Gray Red Ethernet Cable Lead Patch

Cable Cord

We offer a wide range of Networking Ethernet Cables in various lengths, categories and colors to meet your different networking needs.

Features and Specification

1 - Multi- Length: 0.5M/ 1M/ 2M/ 3M/ 5M/ 10M/ 20M/ 30M ( customized length accepted)

2 - Multi- Category: Cat5e, Cat6 and Cat7

3 - Multi- Colours: White/ Gray/ Yellow/ Blue/ Black/ Purple ( customized colous accepted)

4 - Conductor: AWG24/ 26/ 28 Stranded optional

5 - Insulation: Solid polyolefin.

6 - Cabling: 4 twisted pairs cabled Side by side into the cable core.

7 - Shielding: Aluminum Mylar Spirally Wrapped( SSTP)

FEATURES

Wiring Scheme

TIA/ EIA- 568B.

2- 1; ISO/ IEO 11801; NEC/ CEC

Fire protection – IEC60332- 1 ( CM)

Application: Horizontal communication cable; for indoor installation

ANSI/ TIA/ EIA- 568- C.

2: T568A & T568B; ISO/ IEC 11801

8- position conductor/ pair assignment

T568B: 1- 2/ 3- 6/ 4- 5/ 7- 8

T568A: 3- 6/ 1- 2/ 4- 5/ 7- 8

CORDAGE

Constructor: 4 pairs, 7 strands, 28 AWG, UTP

Cable Type: UTP Cat.

5e Patch Cable

Outer Cable Diameter: 6.0mm ± 0.2 mm

Pair Identification: Pair1= Blue/ White Pair2= Orange/ White

Pair 3= Green/ White Pair4= Brown/ White

Outer Jacket: PVC/ LSZH Jacket

PLUG:

Type: Unshielded RJ45 8P8C Modular Plug

Housing: UL listed 94V- 0/ 1/ 2 flame retardant polycarbonate

IDC blades: phosphor bronze, gold plating over 100 μin of nickel in contact area

MECHANICAL

Retention: 50 N ( 11 lbf) for 60±5 s

Mating cycle life: min 750 cycles

Tensile strength: ≥ 20 N per wire

Installation Temperature: 0°C to +60°C

Operating temperature: - 20°C to +60°C

Minimum bend radius: 4 outer cable diameters

Boot Type: Any type of the above picture

Length: 0.3m- 30m or As per requested

Color: Grey/ Green/ Blue/ White/ Black/ Red/ Yellow

Package: polybag or Blister Package

Company Contact:

• Posted By: Winfys Network Products Co., Ltd.

• Phone: 8613884483779

• Address: No. 237, Binhai 2nd Road, Hangzhou Bay Cixi, Ningb, Cixi , China

• Email:

• Business Description: Winfys Network Products Co., Ltd is the China leading manufacturer, factory and supplier of network patch panels, patch cable, fiber optic patch cable, wiring blocks and cable management.

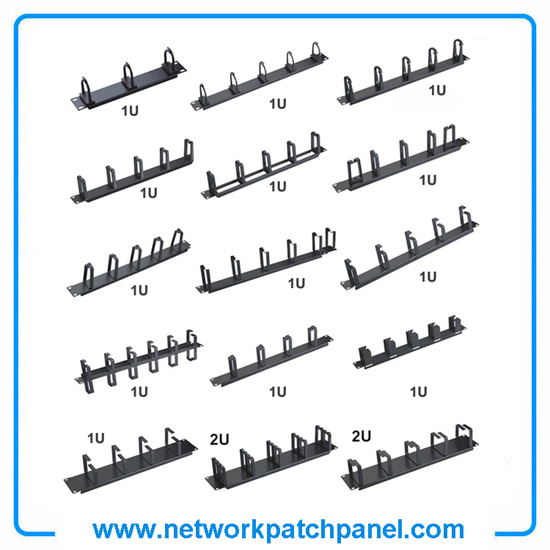

  Our main products include 12/24/25/36/48/50/96 ports plastic cable management, metal cable management, shielded /unshielded CAT5 network patch panels, STP /UTP CAT5E ethernet patch panels, shielded/unshielded Cat 6 patch panels, 110 voice patch panels and 50/100/200 pairs wiring blocks.
