Cat5e Utp Outdoor Cable - China

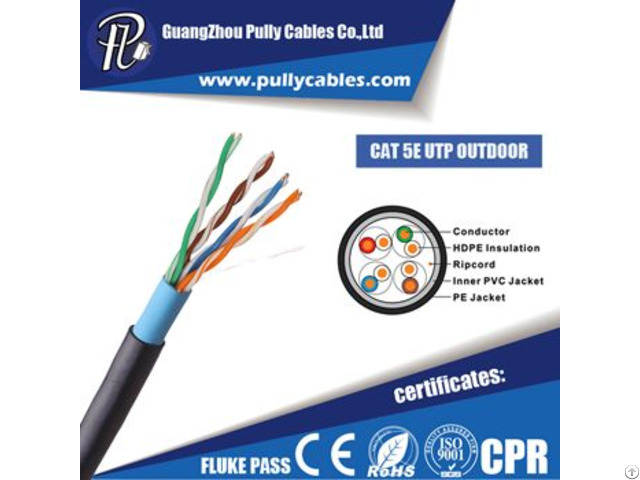

CAT5E UTP OUTDOOR CABLE The CAT5E cable provides performance of up to 100 MHz, Complied to the standard ITA/EIA-568C.

2, It is suitable for all of performance requirement for 10BASE-T, 100BASE-TX (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155Mbps ATM, 4Mbps&16Mbps.

SPECIFICATIONS:

Conductor Solid Bare Copper Conductor Dia.

24AWG Insulation PE

Insulation Dia.

0.91±0.05mm

Inner Jacket PVC

Outer Jacket PE

Jacket Dia.

5.8±0.2mm

Number of shielded pairs

Colour code pair 1 Blue-White / Blue Colour code pair 2 Orange-White / Orange Colour code pair 3 Green-White / Green Colour code pair 4 Brown-White / Brown ELECTRICAL CHARACTERISTICS：

High frequency (at 20°)

Type Attenuation (db/100) NEXT(db) PS NEXT(db) PS ACR(db) PS ELFEXT (db) ELEFXT (db ) Return Loss(db)

1 2.0 67.0 64.0 62.2 61.0 64.0 20.0

4 4.1 58.0 55.0 51.1 49.0 52.0 23.1

8 5.8 54.0 51.0 44.9 43.0 46.0 24.5

10 6.5 52.0 49.0 42.7 41.0 44.0 25.0

16 8.2 49.0 46.0 37.8 37.0 40.0 25.0

20 9.3 48.0 45.0 35.3 35.0 38.0 25.0

25 10.4 46.0 43.0 32.7 33.0 36.0 24.3

31.2 11.7 45.0 42.0 30.0 31.0 34.0 23.6

62.5 17.0 40.0 37.0 20.1 25.0 28.8 21.5

100 22.0 37.0 34.0 11.9 21.0 24.0 20.1

Characteristic Impedance: 100±15Ω

Conductor Resistance ≤9.38Ω/100m

Insulation Resistance: 100mΩ

Mutual Capacitance: <5.6nF/100m

Resistance Unbalance: 5%Max

Capacitance Unbalance: 330pF/100m
