Dual Stage 1x2 Magneto Optical Switch - China

price: 100.00 Dollar US$

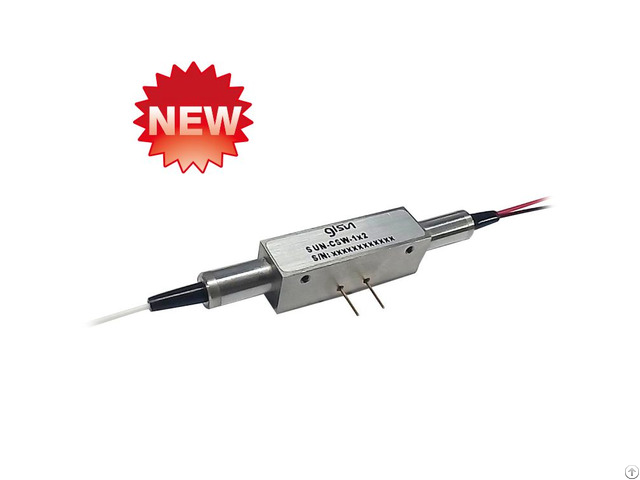

Dual Stage 1x2 Magneto Optical Switch

Products Photos Catalog Dual Stage 1x2 Magneto Photos Catalog

GLSUN Dual Stage 1x2 Magneto Optical Switch - Features

High switching speed

Better durability

High reliability

Low voltage drive

Fail-safe latching

GLSUN Dual Stage 1x2 Magneto Optical Switch - Applications

Optical channel blocking

Configurable Add/Drop

System monitoring, Test&measurement

Fiber-optics sensing system

GLSUN Dual Stage 1x2 Magneto Optical Switch - Specifications

1x2 or 2x1

Wavelength Range: 1520~1580nm

Test Wavelength: 1550nm

Insertion Loss 1, 2: 1.0dB

Return Loss≥50dB

Crosstalk≥40dB

PDL≤0.2dB

Repeatability≤±0.01dB

Operating Voltage: 5V

Durability≥ 30 Bllions Cycles

Switching Time≤100μs

Switching Type: Latching n/a

Optical Power≤500mW

Operating Temperature: -5~ +70℃

Storage Temperature: -40 ~ +85℃

Relative Humidity: 5 ~ 95%

Fiber Type: G657A1

Dimension: (L )29.0x(W)7.3x(H)6mm

Note:

1 Within operating temperature and SOP.

2 Excluding connectors.


Company Contact:


  • Phone: 18607731315

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China

  • Email: Email


Published date: August 30, 2016

  • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
