Ku Band 4 5m Satellite Dish Used In Vsat And Tvro - China

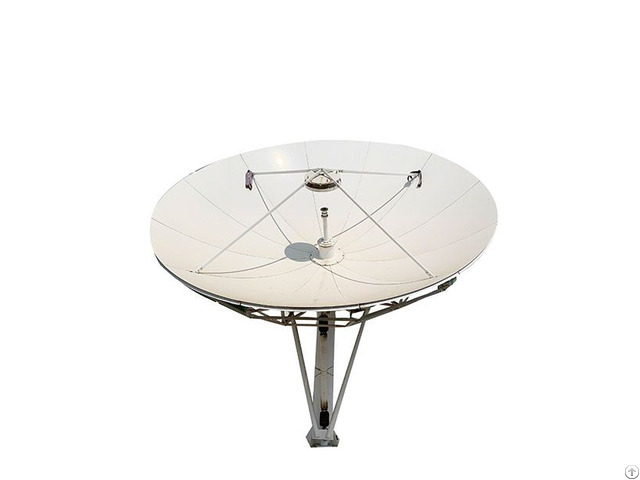

Ku band 4.5m satellite dish used in VSAT and TVRO

The 4.5m Ku band antenna is a shaped dual reflector antenna with good electrical characteristics

such as high efficiency, low sidelobe, and high cross-polarization.

PRODUCT DESCRIPTION

Reliable designing, high rigidity, easy install and good wind resistance.

The antenna reflector is assembled with smaller pieces of components, it is easy to transported.

The antenna surface has undergone strict treatment, coating material is very good.

anti-corrosion is very good.

Easy to maintenance ANTENNA PARAMETERS

Type KU band 4.5m Satellite dish Caliber 4.5M

Operating Frequency Fire 14.00 ～ 14.50

Receiving 10.95 ～ 12.75 Power capacity 5KW Antenna gain Fire ≥ 50 Receiving ≥ 45.9

Antenna Noise Temperature (K)(Elevation10 °) 67 First side Lobe (dB) ≤ -14

Work Surrounding Temperature -35℃~+55℃ Beijing Bafang Ruijie Technology Co., Ltd. is a professional company specializing in the research and development, production, sales and technical services of satellite antennas.

Antennas include all series of satellite receiving antenna, satellite communication antenna, customized antenna, etc.

Antenna size from 0.35m to 16m, More than 100 type.

we have worked hard on satellite antenna researching and producing for a long time.
