L S Band 1 7 To 2 7ghz Rf Broadband Drop In Circulators - China

price: 100.00 Dollar US$

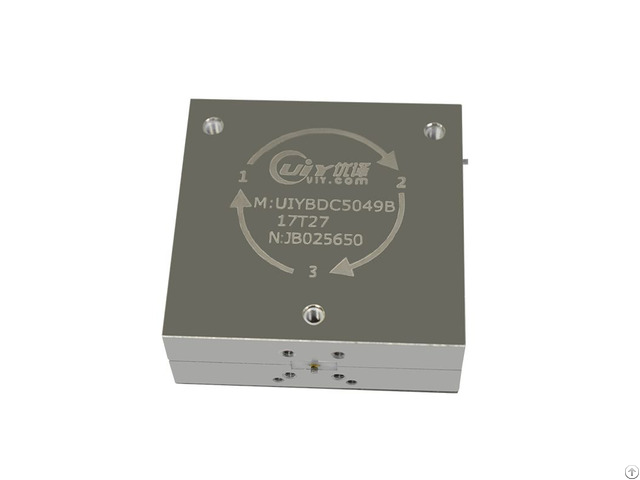

L S Band 1 7 To 2 7ghz Rf Broadband Drop In Circulators

Products Photos Catalog Band 7ghz Broadband Photos Catalog

Model Number: UIYBDC5049B17T27

Frequency Range: 1.7~2.7GHz

Bandwidth: Full

Insertion Loss: 0.5dB

Isolation: 17dB

VSWR: 1.35

Forward Power: 100W

Reverse Power: 100W

Connector Type: TAB

Temperature: 0~+70°C

Dimension: 50.8*49.5*19 mm Our products RF Isolators

RF Circulators

RF Filters

Power Divider/Splitter

Duplexer/Triplexer

Hybridge Combiner

Coaxial Termination

Coaxial Attenuator

Directional Coupler

Waveguide to Coaxial Adapter


Company Contact:


  • Phone: 86-755-83748888

  • Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China

  • Email: Email


Published date: June 8, 2023

  • Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier

    Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.

    UIY Inc.

    was established in 2003 in Shenzhen, China.

    It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.

    The products are sold all over the world.

    Relying on industrial advantages and excellent professional skills, UIY won reputation and public praise in the microwave communications industry under experienced domestic and international operation mode.

    The frequency range DC-112GHz and average power up to 20KW, its products are widely used in civil, military, aerospace, space technology and other fields.

    Product catalog:

    Isolator / Circulator

    Filter / Duplexer / Triplexer

    Power Divider / Splitter

    Hybrid Combiner / Directional Coupler

    Coaxial Termination / Attenuator

    Waveguide to Coaxial Adapter

    Tx & Rx Multicoupler

    Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.

    We are committed to providing our customers with high-quality products for a long time.
