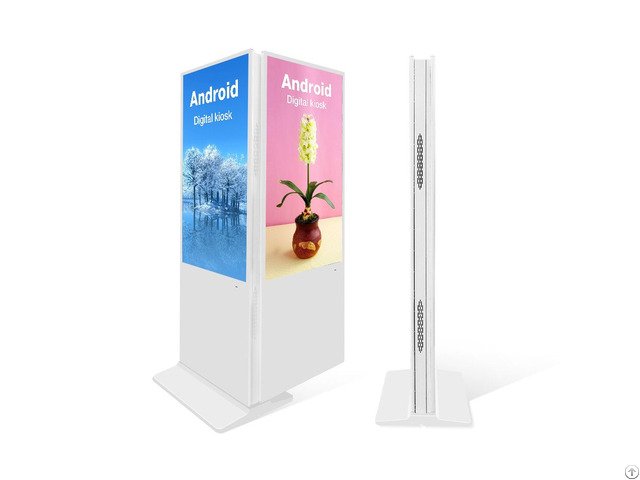

43 49 55 Inch Standing Dual Screen Display Digital Signage - China

Double-sided lifting digital signage advertising machine Double-sided lifting digital signage advertising machine, divided by system: stand-alone version (SD+USB+HDMI), Android / Windows system.

Same display on both sides, different display on both sides (can choose) Touch mode: no touch, infrared 10-point touch, capacitive multi-point touch.

(can choose) According to the screen size can be divided into: , 43 inch, 49 inch, 55 inch, and so on.

You can choose the brightness of the double-sided screen, which can be both indoor brightness 300-500 nits, or 700+300 nits Display parameters

Panel brand LG

Panel size 43-inch 49-inch 55-inch

Resolution 1920(RGB)×1080 [FHD]

Visual size 1209.6(V)×680.4(H) mm

Viewing angle 89/89/89/89 (Min.

)(CR≥10)

Brightness (cd/m²) 400 (Typ.

)

Chroma 16.7M/1.07B, 68% NTSC

Contrast 1300: 1 (Typ.

) [Transmission]

responding speed 8 (Typ.

)(G to G) ms

Screen type a-Si TFT-LCD

Backlight type WLED

LCD life 50000 hours

Touch parameter

Touch screen size 55 inches

Touch scheme Capacitance G+G

Touch glass material Mohs hardness 7H mirror tempered glass

Touch glass transmittance ≥92%

Touch glass thickness Thickness 4mm

Touch positioning accuracy ±1mm

Touch method Hand or capacitive pen

Touch resolution 4096×4096

Touch response speed 3.5ms

Touch life 50 million times

System configuration parameters

operating system Android 5.1.1

Motherboard RK3288

CPU Cortex-A17 quad-core clocked at 1.8GHz

GPU Mali-T764

RAM Standard DDR3 2GB (4GB optional)

Built-in storage Standard 8GB EMMC NAND chip, expandable up to 128GB

4G module Mini PCI-E interface 4G full Netcom

IO/interface HDMI*1/VGA*1/USB3.0*2/USB 2.0*2/RJ45*1/AUDIO/MIC


The internet 100M Ethernet/WIFI: IEEE 802.11 standard

Video support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.

Audio support MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and other formats

Picture support BMP, JPEG, PNG, GIF, etc.

Machine parameters

power input AC90-264V 50/60 Hz

Whole machine power consumption ≤45W

Standby power consumption ≤0.5W

sound Built-in 8Ω10W×2 speakers

Dimensions 2077*270*887.1MM

Body weight 130KG
