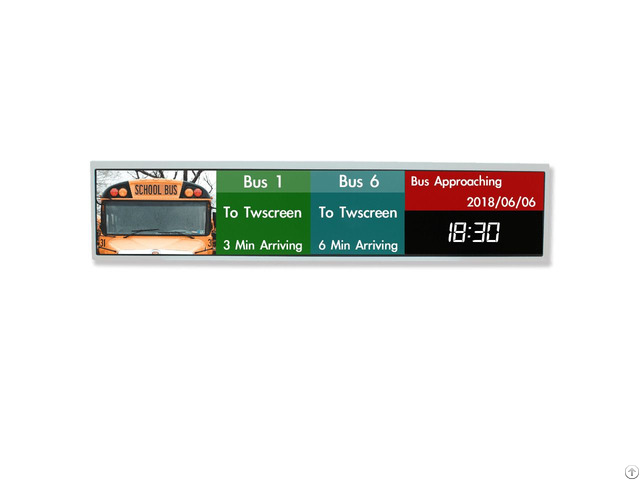

Bar Display - Taiwan

Bar Display Inch : 19 ~ 36.6

Resolution : 1920x132 / 1920x290 / 1920x360 / 1920x540

Brightness : 300~1, 000 nits

Viewing Angle : 89/89/89/89 (IPS)

Interface : LVDS The conventional size customization of bar-type display production generally involves careful cutting process through a readily made TFT LCD panel that contains substrates of glass films, polarizer films, and circuit boards of a readily made TFT LCD panels.

However, the cutting process introduces quality concerns associated with crystal fluid bleeding.

In contrast to such panel resizing method, our native ultra-wide stretched panel sizing is fabricated in an advanced photomask process and not cut.

This guarantees top-notch quality by design offering the display its superior service stability while providing wide viewing angle giving companies the edge it needs to gain traction and create a strong digital presence.

Optional Accessories

AD-1037

● Support to 1920x540 60 Hz (Base on panel spec)

● Signal Input : VGA.

HDMI.

DP.

Audio Phone Jack

● Signal Onput : Dual port 6/8 bits LVDS

● On-board Realtek solution offers top notch reliability, precision, and robustness.

● We provide detailed technical parameters for best performance.

● Offer in-box packaging services for cables including OSD Key Cable, Panel Cable, and Backlight Cable.

Company Contact:

• Posted By: Taiwan Screen Optronics Co., Ltd

• Phone: 886282275490

• Address: 6F, No.87, Lide St, Jhong-he District, New Taipei City, New Taipei City, Jhong-he District, Taiwan

• Email:

• Business Description: TWScreen established in 2003.

  We are professional LCD Agent and display total solution provider.

  Based on three rule：Professional, Fastness and Quality.

  We have already developed to be the leading company of LCD Panel supplier in Taiwan.

  ⧫Smart Touch Panel (Panel + Touch + AD Baord)

  ⧫LCD Panel

  ⧫Touch Display

  ⧫High Brightness Display

  ⧫LCD Controller Board (AD Board)

  ⧫LED Backlight Driver Board

  ⧫LCD Display Kits (Panel + AD Board)

  ⧫Raspberry Pi
