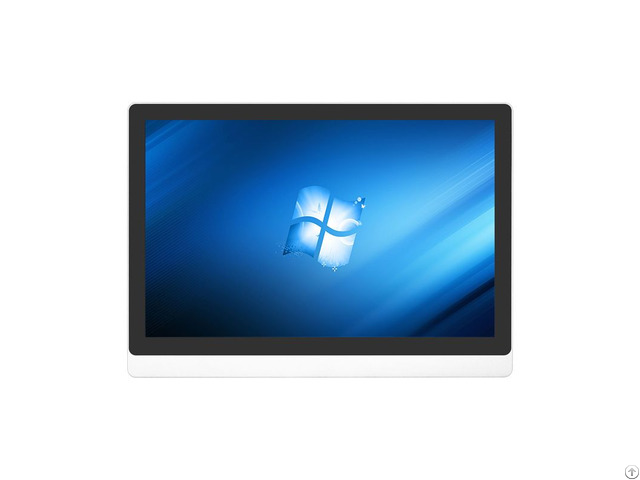

Industrial Touch Panel Pc - China

Industrial Touch Panel Pc

FEATURES:

1 - Super thin and ultra narrow bezel, Fully enclosed design, the whole PC is dustproof.

2 - Seamless design, front panel IP65 waterproof.

3 - Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.

4 - Industrial LCD panel, wide viewing angle, high nits, true color.

5 - Adopt multi-points PCAP touch panel, high sensitive and fast-response.

Covered with 2mm tempered glass for vandalproof.

6 - High performance motherboard, 7x24 continuous operation.

7 - Support wall mounting, desk stand, embedded mounting.

8 - 3 COM optional, RS232/RS422/RS485 optional.

Our company supply Embedded Touch Panel PC, Industrial Android Tablet PC, Stainless Steel Touch Panel Pc, Industrial Touch Monitor, Open Frame Touch Monitor, we have a whole set of quality Full IP65 High Brightness Touch Monitor.

If you have interested in our Touch Screen Industrial PC, pls feel free to contact us.

industrial touch screen pc Specification:

PC

CPU Intel® Celeron J1900, quad core, 2.0GHz, fanless

Chipset Intel ValleyView SSA-CUnit

Memory 2G DDR3

Hard Drive Capacity 32G SSD

Hard Drive Optional SSD: 64G, 128GB, 256GB HDD: 500GB, 1TB

Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality

Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out

Network 1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network WIFI

I/O Interface 2xUSB 2.0, 2xCOM RS232 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD panel

Panel size 8"-21.5"

Support Color 16.7M colors

Brightness (cd/m²) 300+

Response time 5ms

Backlight type LED

Backlight life time ≥50K hours

View angle 80°/80°/80°/80° (R/L/U/D)

Touch panel

Touchscreen Type Project Capacitive Touch (10 points)

Touch options 5 wire resistive touch

Power Supply

External Power Supply AC 100-240V

Working voltage DC 12V

Enclosure

Material Aluminum Alloy

Color Silver, Black, white, color can be customized

VESA mounting 75x75mm/100x100mm

IP grade Front panel IP65 waterproof

Operating Environment

Temperature Range operating: -10 to 60°C, storage: -20 to 80°C

Relative humidity 5%~95% @ 40° C, non-condensing

Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Other

Mounting way wall mounting bracket (optional) desk stand holder (optional)

Accessories Power adapter, power cord, user manual, warranty card

Warranty 1 year warranty

Certificate CE, FCC, RoHS

Shinho is a China supplier of Wall Mounting Touch Monitor.

We have a high-tech work shop on touch screen industrial pc.

We have a complete quality management system.

Choose us, you can be get most careful and thoughtful service!
