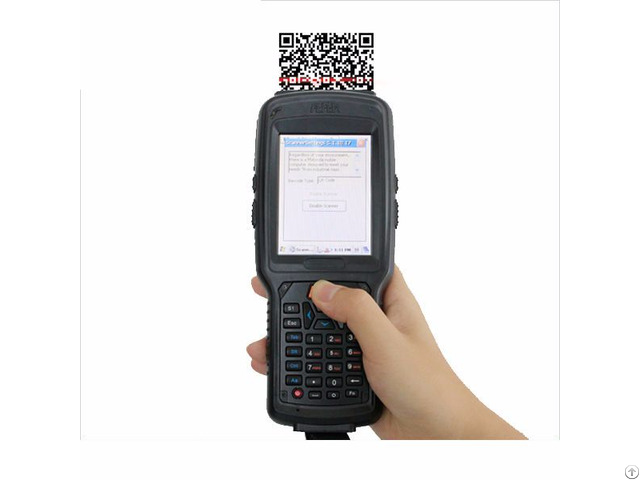

X6 Laser Barcode Data Collector - China

Key Features:

1 - Windows CE or Android OS optional combined with Free SDK!

2 - High level CPU 1.2GHz ARM Cortex A7.

3 - 1D 2D Laser Barcode Data Collector

4 - 3.5 inch big screen with TFT 320*240 QVGA .

5 - Obligate space highly expandable for Barcode, RFID, SAM, OCR etc.

6 - Long life Build-in Li-battery (4000 mAh) makes it easy to use anytime anywhere.

7 - IP 65 approved

8 - Fingerprint Reader--Rugged PDA

Specifications:

System

Android 4.2.2 or Windows CE 6.0 ER3

CPU

SAMSUNG ARM Cortex A8 1GHz

RAM

Mobile DDR 256MB or 512MB

Memory

ROM

MLC NAND Flash512MB

EXPANSION

Micro SD, Max 32GB

Display

3.5" TFT 480*640 VGA or 320*240 QVGA

Surface Resistant Touchscreen

Keyboard

34 Keys

Comm Module

WIFI

802.11b/802.11g

Bluetooth

Class V2.1-EDR

GPS

u-block NEO-6th, Supports AGPS, DGPS, RTK can be customized.



3G

GSM/GPRS/WCDMA HSDPA optional

Camera

3.0Mega Pixels AUTO FOCUS, Flashlight

Vibration Motor & LED Indicator

Laser Barcode Scanner (Optional)

1D Symbol SE955 (Option 2D Symbol SE4500, or Honeywell IT5100)

Fingerprint(Optional)

508 DPI meets FBI iAFIS requirement, (Fingerprint Module can be removable)

RFID

HF 13.56Mhz, ISO/IEC 14443A/B, ISO15693 (Optional)

LF 125k, 134.2khz ISO-11784/11785 (Optional)

UHF 860~950Mhz EPC Gen2, ISO180006 (Optional)

MRZ OCR Scanner

Snapped MRZ OCR Scanner for passport scanning,

ICAO Documents 9303 standard.

(optional)

Interface

USB 2.0 OTG, USB Host 1.1, SPI, RS-232

Power

DC 5V

Battery

Main

4000mAH Li-ion(rechargeable)

Backup

50 mAH Li-ion (unreplaceable)

Endurance Ability

Sleeping

More than 5days

Wifi OFF

More than 16 hours

Wifi ON

More than 8 hours

Recharge Time

Less than 5 hours

Size

192x82.0x30(mm) (without fingerprint)

228 x 82 x 30(mm) (with fingerprint )

Weight

around 300g(without fingerpint),

330g (with fingerprint)

Environment

Operation Temp.

-10°C~ 45°C

Operation Hum.

5% ~ 90%

Storage Temp.

-20°C ~ 65°C

Certification

CE, ROHS, CCC, etc

Sealing Standard

IP65

Drop Durability

Withstand 1.5meter drop on to concrete

Accessories

1Batterym, 1 Stylus with hand strip, 1 USB cable, 1 AC charger, (RS232 cable, Cardle,

Car charger, USB host Ethernet Cable optional)
