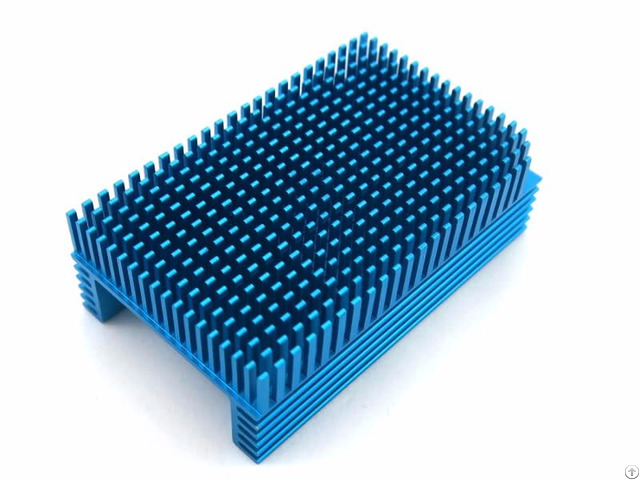

Blue Anodized Bga Heat Sink - Taiwan

Specification:

Width [mm] 58

Height [mm] 18

Length [mm] 58

Material Aluminum 6063-T5

Surface Blue Anodized

Weight [g] 23 DESCRIPTION:

Aluminum extrusions BGA heat sinks for electronic device and the PCB

Heat sinks are designed for common package sizes like T0220, T0247, and D2pak

Aluminum extruded 6063-T5 Cooler and high aspect ratio aluminum heatsink extrusion

Stamped heat sink can have features that clip on to the device so that a screw or secondary clip is not required

Aluminum stampings are anodized for improved performance in natural convection

BGA heat sinks are usually crosscut to convert the extruded fins into pins which allow them to be used in more diverse applications

The heat sinks can be either attached to the device or to the PCB depending upon the application and the mechanical requirements

Board Level heat sinks are so named because they are generally attached both to the device and the PCB

Pushpins are another common attachment method and require two small holes in the PCB

The push pin can be made from plastic or metal, uses the energy of a small spring to provide enough force to keep the heat sink in place.

Company Contact:

• Posted By: Magntek Electronic Inc.

• Phone: 886-2-26265758

• Address: 17F, No.137-11, Sec. 1, Zhongzheng E. Rd., Tamsui Dist., , New Taipei City, Taiwan , Taiwan

• Email:

• Website: https://www.magntek.com

• Business Description: Magntek Electronic Inc.

  specializes in the extruded aluminum enclosure and CNC milling of various shapes and styles are now possible not only on our heat sink type but also on other aluminum type enclosures.

  Press punch processing enables multiple panels to be made quickly from a single aluminum sheet.

  Suitable for measuring instrument, industrial control box, and best suitable for Industrial fanless PC, touch panel display enclosure, automation equipment, measuring instrument, audio amplifier, power supply, data communication devices, measurement tools, and so on.
