Ekemp M7 Android Smart All In One Touch Pos Terminal - China

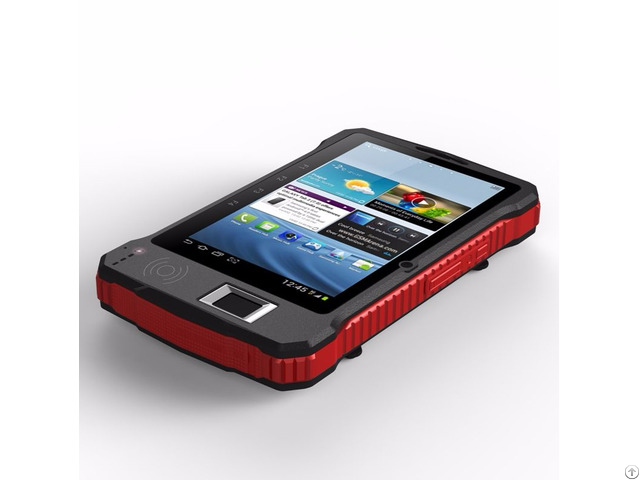

EKEMP(M7) Android Smart All in One Touch POS Terminal

Key features:

1 - Fingerprint Android 7'' Tablet

2 - 7 inch TFT Touch Screen

3 - NFC Reader

4 - 3G WCDMA HSPA

5 - Wi-Fi, GPS, RFID Reader

UHF RFID 0-5m,

WiFi, BT 2.1, GPS, Bluetooth, 3G, USB

5.0M camera,

Rugged PDA, Laser Barcode Data Collector

Specification:

CPU

Qualcomm 8225 (8625)1.2 Ghz

O.S.

Android 4.2.2(multi-lingual)

Memory

4GB ROM + 1GB RAM

Display

7 inch Touch Screen QVGA 1024*600 resolution

Screen &Audio Processor Chip (APC)

Resistive Film Touch Screen & WM8994 for

Audio Processor Chip (APC)

Weight&Shape dimension

500g (including battery);220*132*26.5mm

Audio interface

Speaker (single) x 1, Microphone x 1, Receiver x 1

Keyboard

Touch screen

Output&Card Slot

USB Host x 1, TTL x 1, DC Jack x 1(Alone);

Micro SD/TF x 1, SIM x 1

Camera

Black: 5.0 million pixels, fill light, automatic focus,

Front 1.3 million pixels

1D Barcode Scanner(Optional)

Scanning speed: 100p/s + 20p/s;Types: UPC/EAN, Code128,

Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5,

Codabar, MSI, RSS

2D Barcode Scanning by Camera

Support scanning 2D code by Camera

Fingerprint(Optional)

Capacitive acquisition recognition time < 1 s, UPEK TCS1

or TCS2 Optional

GPS&WIFI

Support A-GPS, 48 channel, Orientation degree <10m;WIFI: 802.11 /b/g

Bluetooth

Bluetooth Class2.1-EDR

Mobile Communication

GSM/GPRS: Frequency band: 850/900/1800/1900MHz

WCDMA/HSDPA: Frequency band: UMTS2100/900 MHz

UMTS1900/850MHz;GSM850 /900/1800/1900MHz;CDMA200 0:

Frequency band: CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A;

HF(13.56MHz) (Optional)

ISO15693, ISO14443A/B, NFC

Power Master Battery

3.7V, 8000mAh rechargeable lithium battery.

Removable;

Up to 11000mAh(Optional)

Physical parameters

Operating temperature -10°~ 50°;

Storage temperature-20°~ 60°;

Humidity5% ~ 95%

IP65 Industrial waterproof level

Android applications

Support work with every app from Google Play

and other app market

Warranty time

1 year Warranty time
