All In One Industrial Panel Pc - China

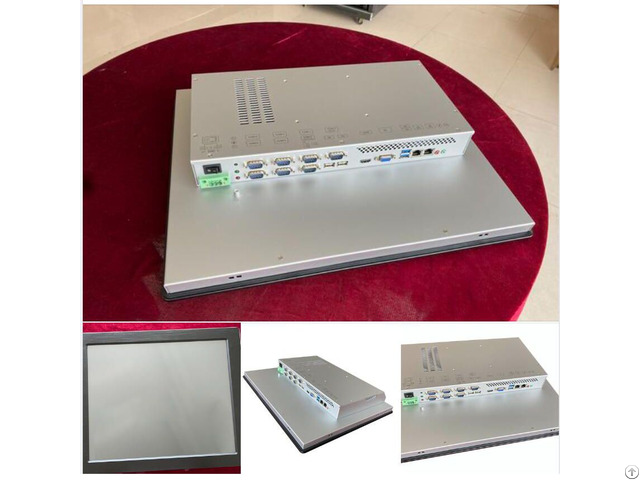

IPC-1501AI is a industrial All in one pc with intel i7-6700 processor.

Industrial 15 inch Panel PC based on Intel Gen 6 7 8 9 Core i3 i5 i7 processor.

supoort win, linux os.

15~21.5 inch industrial All in one pc are avaliabel for your industry control project.

Features 15" TFT 1024 × 768 with resistive touch screen

Aluminum panel with IP65 compliant

Support Intel the Gen.

6/7/8/9th Core i3/i5/i7, Celeron LGA1151 socket CPU

2x DIMM DDR4 2400/2133 SDRAM, MAX support 32GB

1x 2.5" SATA SSD/HDD; 1x M.

2 Slot support M.

2 2260/2280 PCIE standard SSD

6COM(1x RS485), 1xHDMI, 1xVGA, 4xUSB, 1x GPI0, 2xLAN, 1xAUDIO and MIC

1x Mini PCIe slot

100~240V AC Power adapter input D-12V (Optional DC 9-36V input)

Wireless LAN with antenna (optional)

Modularize design for easy installation and maintenance

Specifications Main System CPU Intel ® Core 6/7/8/9th i7/i5/i3, Celeron ® LGA1151 type CPU

Chipset Intel H310C chipset

System Memory 2x DDR4, MAX support 32GB

LAN 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet

HDD (hard disk ) 1x 2.5" SATA SSD/HDD; 1x M.

2 Slot

Audio Realtek ® ALC662, 5.1 channel surround Audio

I/O Connector 5 x RS-232

1 x RS422/485

1x HDMI port

1x PS/2 (Keboard/mouse)

1x VGA DB-15 Connector

1x Audio (Mic-in / Line-out)

2x 10/100/1000MLAN port ( RJ-45 )

2x USB2.0, 2x USB3.0

1x 3Pin DC power input terminal block

Expansion 1 x Mini PCIe slot General Construction Aluminum panel with IP65 compliant

Color Black or OEM(>=100 units)

OS Support Windows 10/8/7, Linux

Mounting Panel mount or Standard VESA 100mm

Power supply DC 12V, with External AC adapter, Output Rating 120W

DC optional Optional DC 9-36V input LCD display Display type 15" XGA TFT LCD LED Backlight

Resolution 1024 x 768 pixels

Luminance 350 cd/m2

Viewing angle 178 °(H), 178 °(V)

Pixel Pitch 0.297 x 0.297 mm

Contrast Ratio 1000: 1

LCD MTBF 50, 000hrs Touchscreen Type Analog Resistive

Controller Interface Internal USB interface controller

Resolution Continuous

Light Transmission 81% or more

Operating Force ≤100g

Life Expectancy 35 Million Environmental Operate Temperature 0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)

Humidity 10% to 90%@ 40 °C, on-condensing

Vibration 17 to 500HZ 1G PTP

Operating Shock 1G /peak ( 11m sec)

Ingress Protection Front panel: IP65 Packing info Dimensions(WxHxD) 406 x 312 x 70mm

NET weight 6.5 KG
