Hcipc B205 2 Hcl Sb75 6l2fspb Intel B75 82583v 82574l 6lan Firewall System 1u Router - China
price: contact company for price
Series No.
B205-2 Model HCL-SB75-6L2FSPB
Platform Intel
Chassis Colour Dark grey

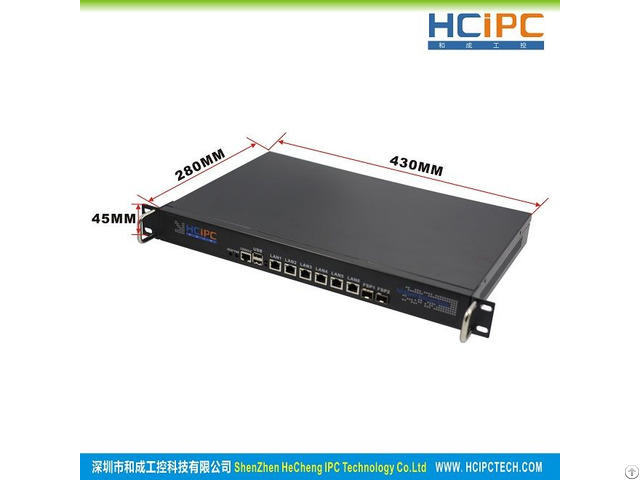

Size 430*280*45MM ( L*W*H)
Structure Heavy Steel Structure
Material High Strength Fine Steel Casting Iron
Package size 520*380*120MM
Net Weight 3.5kg
Gross Weight 4kg
Motherboard Model M505-2 LAN-HCB75SFP-6L
CPU Intel b75 Sandybridge/IvyBridge 32nm/22nm LGA1155
Chipset Intel B75
Memory 2*SO-DIMM, DDR3 1600MHz Memory, max up to 16GB
Storage CF 1 x CF(optical, without onboard, need OEM)
Harddisk 1 x 2.5inch Harddisk
System LAN 6 x LAN, 6*Intel 82574L/82583v 1000M
2 x FSP (Optical Fiber) Intel i350 chip
USB 2 x USB2.0
COM 1 x R232 (Optional)
Display 1 x VGA Cooling System 2x System Fan
System Control Power On/Off button LED Indicator PWR_LED, HDD_LED
PWR Power Mode 1U Flex ATX 250W Powersupply Feature 100-240V
Reliability Installation 1U Rack mount
Operation Temp -5~55°C
Storage Temp -40~80°C
Relative Humidity 10%~80%, Relative humidity, no-condensing
Company Contact:
- Posted By: ShenZhen HeCheng IPC Technology Co.Ltd
- Phone: 13428782142
- Address: 607,6F,No.G Building,LiHao Industiral Park,No.78 AiNan Road,Longgang District, Shenzhen , Guangdong , China
- Email:
Published date: November 15, 2018
