Mini Ip65 7 Inch Industrial Panel Mount Touch Screen Lcd Monitor - China

price: contact company for price

Mini Ip65 7 Inch Industrial Panel Mount Touch Screen Lcd Monitor

Products Photos Catalog Mini Ip65 Industrial Photos Catalog

Specification

7' Touch Industrial Monitor

Mode Name LC- MI0701ET- 4R

Screen Size 7″

Active Display Area ( mm) 153.6mm( W) ×90.0mm( H)

Display Mode 16: 9

LCD Type TFT- LCD

Resolution 1024×600

Display Color 16.7M

Pixel Pitch( mm) 0.150mm( H) ×0.150mm( V)

Brightness( nits) 230cd/ m²

Contrast Ratio 700: 1

Viewing Angle 150( H) / 145( V)

Response Time 5ms

Backlight LED backlight

Interface D- Sub15 pin( VGA) DVI HDMI

Power DC12V 2A 50HZ/ 60HZ

Power Consumption ≤20W ( Max)

Plug & Play DDC 1/ 2B

OSD Control Auto adjust, Brightness, Contrast, Hori.

/ Vert.

Position, Clock, phase, Color, Language

MENU Chinese/ English( other languages supported)

Mount Method

Mounting Embedded Mount

Optional Mounting Way VESA 75mm/ 100mm

Touch Type

TouchScreen Type Resistive( 4- wire)

TouchScreen interface Serial ( RS232) or USB( B)

Certificate Approval CE, RoHS, CCC, FCC, ISO9001

Warranty 1.5 years

Appliatation

ATM/ Kiosk/ Transportation/ Industrial Automation/ Medical Treatment


Company Contact:


  • Phone: 8618673326187

  • Address: Floor 5, Builing B3 , Fenghuanggang No.3 Industria, Shenzhen , China

  • Email: Email

Published date: October 22, 2015

  • Business Description: Anrecson Electronics Co., Ltd was established in 1998, we are a worldwide

    leading manufacturer specialized in designing&producing touchscreen

    monitor, open frame monitor, industrial monitor, industrial panel PC,

    digital signage, CCTV monitor and video wall etc.

    Our monitor size ranges

    from 5 inch to 82 inch and are widely used in the fields of security

    monitoring, traffic control center, broadcasting system, military, city

    square, shopping mall, bank, school and hospital, etc.

    Our monitors can be

    applied in devices like ATM, Self service kiosk, Transportation,

    Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC

    Machine etc.

Related listings



  • Aluminum Front Bezel 15 Inch 1000nits Industrial Touch Panel Pc
    Aluminum Front Bezel 15 Inch 1000nits Industrial Touch Panel Pc
    Computers - Industrial - Shen zhen Anrecson Electronics Co.,Ltd - China - October 22, 2015 - contact company for price

    Display Type/ Size Color TFT LCD/ 15″ Active Display Area ( mm) 304.128mm( W) ×228.096mm( H) Display Mode 4: 3 Max Resolution 1024×768 Support Color 16.7M Luminance( cd/ m2) 1000cd/ m² Backlight LED backlight Contrast Ratio 700: 1 Response Time ...

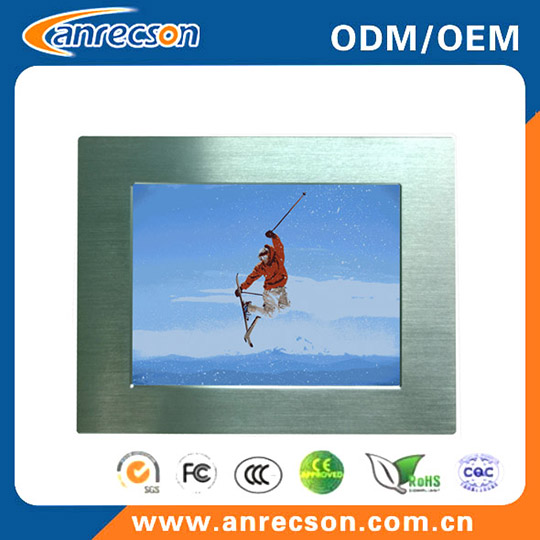

  • Oem Odm 12 1 Inch High Brightness Sunlight Readable Industrial Touch Panel Pc All In One
