Modbus Bacnet To Mqtt Ibms Industrial Iot Gateway Bliiot Ba113 - China

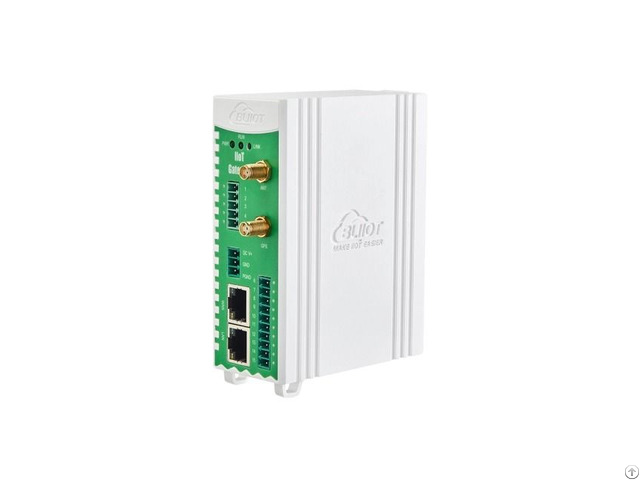

The BACnet to MQTT Gateway BA113 is a protocol conversion device that plays a key role in building automation and Internet of Things (IoT) systems.

Its main function is to convert BACnet protocol data to MQTT protocol, thereby enabling communication between BACnet devices and MQTT-based cloud platforms or IoT applications.

Key Features Full Protocol Compatibility & Seamless Integration Downlink Collection: Supports BACnet/IP, BACnet MS/TP, Modbus RTU/TCP (Master Mode)

Uplink to Cloud: Compatible with MQTT, HUAWEI IoT/AWS IoT/Alibaba Cloud IoT, ThingsBoard, BLIIOT Private Cloud

Protocol Conversion: Bidirectional Modbus RTU↔TCP conversion with transparent transmission Powerful Edge Computing ARM MCU @300MHz + Linux OS

Connect 10/50 devices & collect 512/4000 data points simultaneously

Hardware/software watchdog for 24/7 reliability Flexible Connectivity

Dual Ethernet Ports: 1×WAN + 1×LAN (10/100M auto-adaptive), supports cascaded switches

Serial Ports: 2 or 6×RS485/RS232 (customizable baud rate/parity)

WiFi Option: Dual-band 2.4G/5G support Typical Applications Smart Buildings: Integrate HVAC, lighting & security subsystems into BACnet BMS

Industrial IoT: Bridge Modbus devices to Building Automation systems

Energy Monitoring: Collect real-time meter data for control centers
