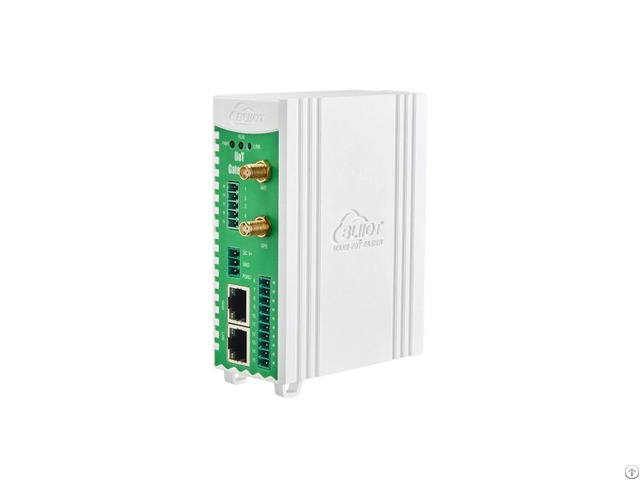

Modbus To Mqtt Industrial Iot Gateway Bliiot Bl101 - China

BL101 is an industrial IoT gateway that converts Modbus RTU, Modbus TCP to MQTT protocol.

The gateway supports Ethernet, WiFi, or cellular networks(4G) transmission, ensuring that data is transmitted to AWS, ThingsBoard, IgnitionSCADA, and other cloud platforms stably and reliably.

Key Features

Hardware Configuration Powerful Core: 300MHz ARM processor + Linux OS, 128MB RAM + 64MB Flash memory.

Dual-channel RS485/RS232 (baud rate 2400-115200bps, 7/8-bit data bits adjustable).

Supports cascaded switch device acquisition with high scalability.

Multi-Network Interconnection Multi-network redundancy: Prioritizes wired Ethernet; automatically fails over to 4G when wired connection fails (Optional module, supports global mainstream bands).

WiFi expansion (Optional): Dual-band 2.4G/5G, 150Mbps speed, WPA2 encryption support.

Secure communication: Supports OpenVPN, SNMP V1/V2 protocols with encrypted data transmission.

Efficient Data Management

High-capacity acquisition: Simultaneousl y connects 10/50 devices with support for 512/4000 data points.

Transparent transmission: Bidirectiona l conversion between Modbus RTU/TCP; native data transparent transmission.

Customizable protocols: Tailorable login/heartbeat packets for private cloud platform integration.

Typical Applications

Smart factory: PLC/sensor data is uploaded to the cloud to monitor production line status in real time.

Energy management: Modbus data of electricity/water meters are aggregated to the energy management platform.

Remote operation and maintenance: 4G networking enables remote diagnosis and maintenance of equipment in remote areas.
