Ykju 8329nl 2250030 1 100 Base Tx Rj45 Network Port Connectors - China

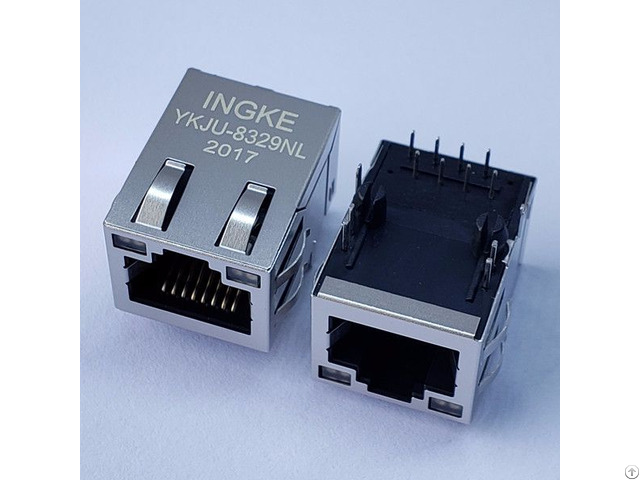

INGKE YKJU-8329NL Direct Substitute 2250030-1 Through Hole 1 Port 10/100 Base-TX RJ45 Network port connector Part Number: 2250030-1

Made in China: YKJU-8329NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-TX, AutoMDIX

Mounting Type: Through Hole

Orientation: 90° Angle (Right)

Termination: Solder

LED Color: Green, Yellow- Green, Yellow

Number of Cores per Jack: 4

Shielding: Shielded

Features: Board Guide

Tab Direction: User Selectable

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 15µin (0.38µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

6605841-1 6605759-1 5-6605308-1 2250015-3 2250045-1 5-6605758-1 1840408-6 1-6605834-1 5-6610000-1 6605814-5 1840854-3 1840750-7 6605444-6 5-1605809-1 5-6605473-7 6-1605423-1 6-1605758-1 6-1605809-1 6-1605811-1 6368400-5 605814-2 6605839-1 1840697-4 2250013-6 2250051-4 2250067-8

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
