Bms100 Analog Input Rs485 Battery Monitoring Io Module - China

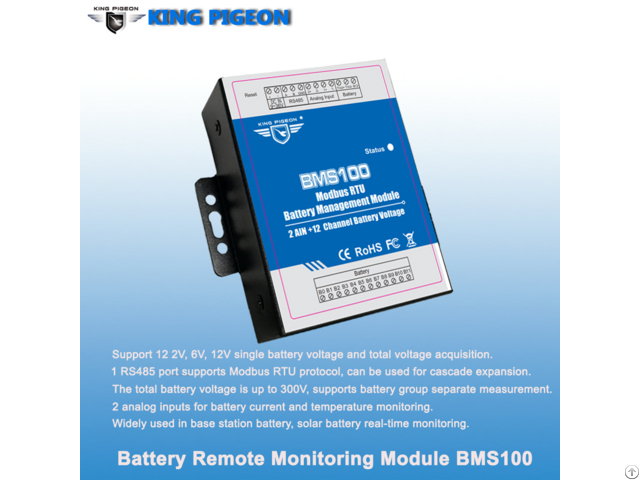

Battery Monitoring Module BMS100 can be used in various industrial automation measurement and control systems.

It can measure 4-20mA and 0-5V transducer signal of pressure, temperature, current, etc.

It can measure server room battery management and voltage of each battery in each group.

1 - Acquisition 2/4 channels of analog input 4 ～ 20mA, 0 ～ 5V, optional;

2 - Adopt 12-bit AD acquisition processing, high accuracy measurement;

3 - Standard Modbus-RTU protocol;

4 - RS-485 (RS-422 optional) communication interface with ESD protection circuit;

5 - Wide working voltage DC9 ～ 36V, with anti-reverse protection function ;

6 - Using industrial-grade chip, built-in watchdog, and has perfect anti-lightning and anti-interference measures to ensure reliability;

7 - Configurable maximum and minimum value of analog input, intelligent conversion of actual value, convenient for various analog measurement requirements;

8 - Can measure 12 single battery voltages, several battery group and 1 total voltage;

9 - It has 3 precision gears for different voltage ranges to improve the voltage measurement accuracy;

10 - With LED light to indicate working status, easy to install and debug on site.
