Hort Sel Ling Mc Horizontal Scraper Chain Conveyor - China

Introduction of MC Mining Enclosed Buried Chain Scraper Conveyor

MC Mining Enclosed Buried Chain Scraper Conveyor as well as MZ, MS series buried scraper conveyor is a kind of continuous conveyor equipment in the closed rectangular section shell which conveys powdered small particle and small massive bulk with

Applicable Scope of MC Mining Enclosed Buried Chain Scraper Conveyor

MC Mining Enclosed Buried Chain Scraper Conveyor is widely used in chemical, machinery, metallurgy, light industry, food, medicine, transportation, utilities and other departments.

It is used to transport the dust-like, small granular materials and small block.

Main Characteristics of MC Mining Enclosed Buried Chain Scraper Conveyor

1 - Totally enclosed structure, light weight, small volume.

2 - Convenient installation and maintenance.

3 - Horizontal or slightly inclined transport from 0° to 30°.

4 - Multiple material feeding point and discharging point.

5 - Conveying distance is up to 80m with material temperature lower than 120°C.

Technical Parameters of MC Mining Enclosed Buried Chain Scraper Conveyor

model MC 16 MC 20 MC 25 MC 32 MC 40

machine width(mm) 160 200 250 320 400

Conveying speed (m/s) 0.16 m/s, 0.20 m/s, 0.25 m/s, 0.32 m/s

material bulk density(t/m3) 0.2~1.8 t/m3

delivery value(m3/h) 11~22 15~30 23~46 46~74 55~110

conveyor Height (m) 5~30m

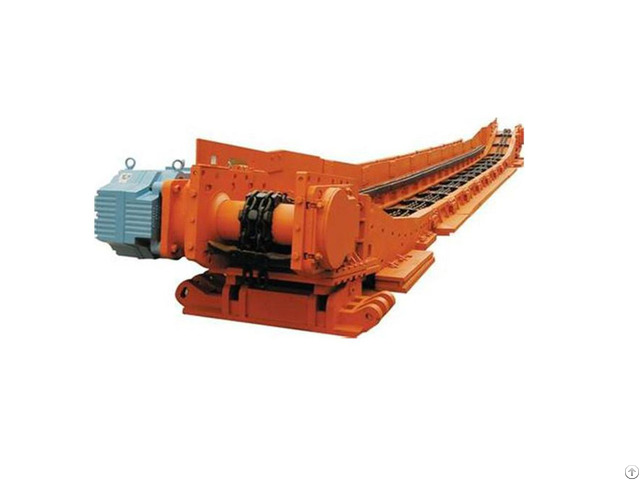

setting angle (°) 30°, 45°, 60°, 75°, 90° Figure Pictures of MC Mining Enclosed Buried Chain Scraper Conveyor
