Hesco Barrier

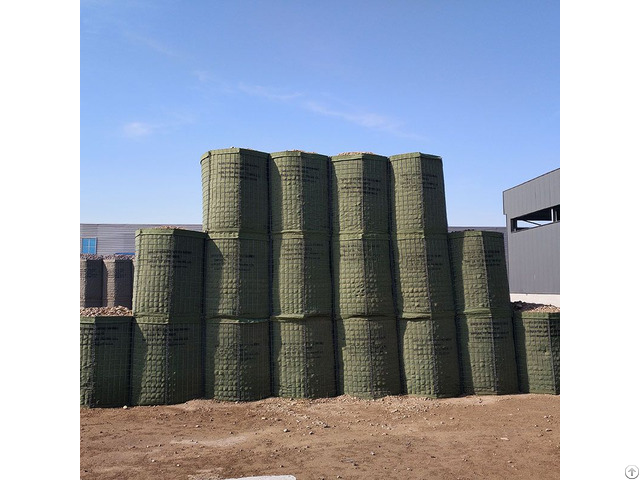

Hesco barrier also named as hesco bastion, hesco defense wall, sand cage, welded gabion box, etc.

It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geo-textile.

Product Description

Zerun Hesco barrier also named as hesco bastion, hesco defense wall, sand cage, welded gabion box, etc.

It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geo-textile.

Units can be extended and joined using the provided joining pins.

It is easy install with using minimal manpower and commonly available equipment.

After extended, it is filled into sand, stone, then hesco barrier like a defence wall or bunker, it is widely used for military fortification and flood control.

Military wall hesco barrier are mainly used in military and flood control for its modular structure and quick setup.

For military, a gabion Hesco with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel.

While for flood protection, gabion Hesco can be assembled soonest and come into use.

We are also Gabion Box Supplier.

Main type of Defensive

Panel Size 0.61x0.61m, 1x1m, 1.2x1.2m, 1.5x1.5m, or as your request.

Mesh Wire Diameter 3~6mm Galvanized steel wire

Mesh Size 2"x 2", 3" x 3" (76.2mm x 76.2mm), 4"x 4"

Spring Wire Diameter 3~6mm Hard steel wire

Joining Pins 3~6mm galvanized hard steel wire

Geotextile heavy-duty non-woven polypropylene cloth, weight: 250-300g/m², Geotextile colour color can be white, beige-sand, olive green, etc

Panel Surface treatment Hot dipped galvanized, Electro galvanized, Al+Zn Alloy Wire

Packing Wrapped with shrink film or packed in wooden or metalpallet, then wrapped with plastic film.

Dimension of Defensive Barrier:

Unit Type Height Width Length Internal Cells

MIL 1 1.37m/4' 6" 1.06m/3' 6" 10m/32' 9cells(4+5)

MIL 2 0.61m/2' 0.61m/2' 1.22m/4' 2cells

MIL 3 1.0m/3' 3" 1.0m/3' 3" 10m/32' 10cells(5x2)

MIL 4 1.0m/3 '3" 1.5m/5' 10m/32' 10cells(5x2)

MIL 5 0.61m/2' 0.61m/2' 3.05m/10' 5cells(5x1)

MIL 6 1.68m/5' 6" 0.61m/2' 3.05m/10' 5cells(5x1)

MIL 7 2.21m/7' 3" 2.13m/7' 27.74m/90' 13cells(4+4+5)

MIL 8 1.37m/4' 6" 1.22m/4' 10m/32' 9cells(4+5)

MIL 9 1.0m/3' 3" 0.76m/2' 6" 9.14m/30' 12cells(6x2)

MIL 10 2.12m/7' 1.52m/5' 30.5m/95' 20cells(5x4)

MIL 1.9 2.74m/9' 1.06m/3' 6" 3.3m/11' 3" 3cells(3x1)

EPW 1 2.1m/7' 1.06m/3' 6" 33m/108' 30cells(5x6) Typical applications include:

1 - Perimeter security and defence walls

2 - Equipment revetments

3 - Personnel and material bunkers

4 - Observation points

5 - Defensive firing positions

6 - Entry control points

7 - Guard posts

8 - Explosives and contraband search areas

9 - Highway checkpoints

10 - Border crossing checkpoints

11 - Protecting existing structures

12 - Highway traffic management

13 - Hostile vehicle mitigation Usage:

♦ Perimeter security and defense walls

♦ Equipment revetments

♦ Personnel and material bunkers

♦ Observation points

♦ Defensive firing positions

♦ Guard posts

♦ Protection engineering of seaside area

♦ Highway checkpoints

♦ Border crossing checkpoints

♦ Protecting existing structures

♦ Flood control retaining wall

♦ Coastal erosion
