O Grip Stair Treads - China

O-Grip Stair Treads Solve Slippery Problems Completely

Stair treads safety haven't got enough attraction and been neglected.

However, accidents occur on stairs have caused loss of production and personal injury.

O-Grip stair treads resolve the stair treads slippery problems perfectly and cost you much less than bar grating.

The larger debossed holes and perforated buttons surrounding the holes offer maximum traction and prevents slips, falls and slides.

Compare against the diamond strut stair treads, O-Grip stair treads are more friendly to human.

Carrier plates, with pre-punched holes, are welded at each end of the O-Grip stair treads and allow the tread to be bolted to the stair stringers to create your own custom style.

They are available in mill-galvanized steel or HRPO plain steel.

Aluminum or stainless steel should be ordered.

The plates are sold by the pair.

O-Grip grating stair welded with welded carrier plates.

OGT-01: O-Grip grating stair tread.

Product description: Item: O-Grip stair treads.

Nominal width: 5" (2-Hole), 7" (3-Hole), 10" (5-Hole) and 12" (6-Hole).

Channel Depth: 1-1/2" & 2".

Length: 24", 30" and 36".

Material options:

Mill-galvanized steel: 11 ga and 13 ga.

Hot rolled pickled and oiled carbon steel: 11 ga and 13 ga.

Carrier plate: see table-1 below.

Features & benefits: Large opening for fast drainage of fluids, grease, mud, snow and debris.

Offer maximum traction preventing slips and falls.

Light weight and high load ability.

Free maintenance.

Dimension details of O-Grip stair treads carrier plate.

OGT-02: O-Grip Stair Tread Carrier plate drawing.

Table-1: O-Grip Grating Carrier Plate Specification

Grating Width

A Channel Depth

B Dimension C Dimension

D

5" 1-1/2" 3/4" 2"

2" 1"

7" 1-1/2" 3/4" 4"

2" 1"

10" 1-1/2" 3/4" 7"

2" 1"

12" 1-1/2" 3/4" 9"

2" 1"

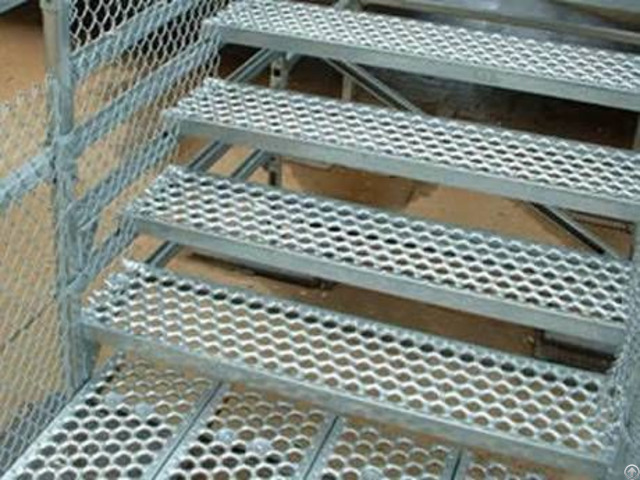

Galvanized steel O-grip grating stair treads durability and cost-effective.

OGT-03: Galvanized steel O-Grip stair treads.

O-Grip stair treads grating used in residential area protecting the walkers.
