Ptfe Extruded Rod - China

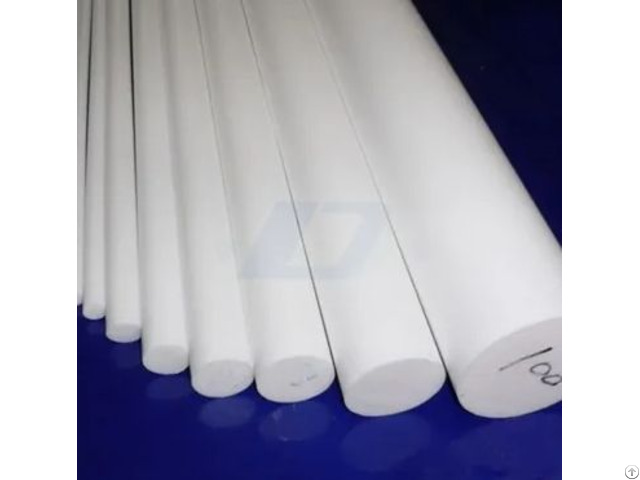

PTFE Extruded Rod

1 - Characteristics of the product:

PTFE rod: One is manufactured by paste extruding method in the diameter from 3mm to 170 mm, and other is made by molding method in diameter from 170 to 400mm.

2 - Main Features of PTFE rod

1) Heat resistance property---It is able to wok stably between -180°C to +260°C.

2) Excellent non-sticky property---It easier to remove those like resin, dopes, oil and other sticky things.

3) Good mechanical property with no distortion and low friction coefficient.

4) Excellent insulation property.

5) Materials like carbon, graphite and glass fiber can be filled.

6) corrosion resistance.

7) high insulation.

8) It’s not easy to aging.

9) Virgin and recycled materials are available.

3 - Application:

The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosivity medium, Antisticking materials, lubrication material.

4 - Technical data:

Project Unit Standard

Tensile strength Mpa ≥20

Elongation % ≥200

Apparent density g/cm3 2.20~2.30

5 - PTFE Extruded Rod specifications:

Diameter: 3mm, 4mm, 5mm~170mm

Length: 1000mm~2000mm or as per customer’s request

Operation Temperature: -180℃ ~+260℃

Packing: plastic membrane inside, wooden case outside

Remark: These are very common size, we also can supply size according to customer’s special request.

PTFE Teflon Rod

PTFE (Polytetrafluoroethylene) Rod is a type of plastic material that is commonly used in various industrial applications.

It is a synthetic fluoropolymer of tetrafluoroethylene and has a high resistance to chemicals, heat, and electricity.

PTFE Rod is widely used in the manufacturing of chemical-resistant gaskets, seals, bearings, and electrical insulators.

It is also used in the food processing industry as it is non-toxic and non-stick.

PTFE Rod is also known for its low friction coefficient, which makes it an ideal material for use in sliding bearings, piston rings, and other sliding applications.

PTFE Rod is available in various sizes and shapes, including round, square, and rectangular.

PTFE Rod can be machined to precise dimensions and tolerances using conventional machining techniques such as milling, turning, and drilling.

Our PTFE Rods are made from high-quality PTFE material, which is known for its excellent corrosion resistance, high-temperature resistance, and low friction coefficient.

As a top-rated PTFE rod supplier, we offer a variety of sizes, diameters, and lengths to meet your specific needs.

Our PTFE rods offer exceptional mechanical strength, excellent electrical insulation, and outstanding chemical resistance, making them perfect for applications in harsh environments.

If you are interested in our ptfe teflon rod, feel free to contact us!
