Pvdf Nano Aluminum Composite Panel Acp - China

PVDF NANO Aluminum composite panel ACP

SHUANGOU PVDF NANO ACP Product introduction

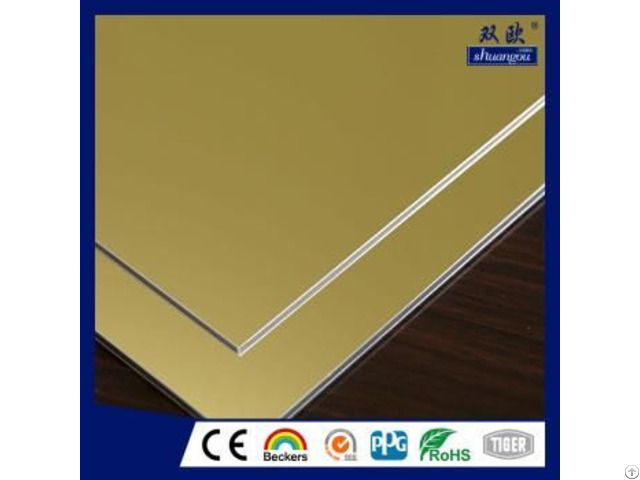

PVDF NANO Aluminum composite panel ACP is a kind of panel comprises a polyethylene core between two aluminum skin, the front surface is coated with PVDF NANO paints.

Its excellent weather resistance is more suitable for the building’s exterior decoration and curtain wall projects, the warrantee of the paint is 20 years, the color will not change or fade.

The Nano-PVDF panel is coated anti-pollution Nano paints based on the PVDF coating layer.

PVDF NANO contains the traditional PVDF coating panel's advantages.

Meanwhile by the high-tech Nano technology, it has a more super advantage in the pollution resistance, self-cleaning function, acid and alkaline resistance.

SHUANGOU PVDF NANO ACP Raw Materials

Aluminum skin material: high strength aluminum alloy 1 Series or 3 Series sheets

Plastic Core: Non-toxic low-density polyethylene (LDPE) core

Surface paint: PVDF NANO coating SHUANGOU PVDF NANO ACP Specification

Width: 1220mm, 1250mm, 1500mm.

Length: According to customer needs, even up to more than10 meters.

(Suitable length can be selected according to container size.

)

Panel thickness: 3mm~6mm, 4 mm is suitable for external wall.

Aluminum skin thickness: 0.21mm~0.50mm, 0.30mm and 0.40mm is suitable for external wall.

Standard size: 1220mm x 2440mm (4' x 8'); 1500mm x 3050mm (5' x 10')

Colors: Provide SHUANGOU color chart with more than 50 colors, Color sample color matching provided by customers is acceptable.

SHUANGOU PVDF NANO ACP Physical Parameter

Unit Weight (ASTM D792): T4mm=5.5kg/m²

Thermal Expansion (ASTM D696): 24-28

Thermal Deformation Temperature (ASTM D648): 115℃

Thermal Conduction (ASTM D976): 0.102kcal/m.

hr℃

Impact Resistance (ASTM D732): 1.640kgf

Adhesive Strength (ASTM D903): 0.77kg/mm

Flexural Elasticity (ASTM D790): 4030kg/mm²

Shear Resistance (ASTM D732): 2.7 kgf/mm²

Wind-pressure Resistance (ASTM E330): PASSED

Properties Against Water (ASTM E331): PASSED

We are an Fire Plastic Composite Panel Factory.

SHUANGOU PVDF NANO ACP Advantage

Why choose SHUANGOU PVDF NANO Aluminum composite panel ACP?

Excellent weather resistance.

Easy to maintain.

Easy to process.

Easy to install.

Lightweight and colorful.

Non-toxicity and safety.

Self-cleaning function

Excellent pollution resistance

Excellent coating property.

SHUANGOU PVDF NANO ACP Applications

SHUANGOU PVDF NANO ACP Widely used in exterior cladding & curtain wall projects of high-grade buildings, such as bank, hospital, airport, subway, railway station, business office building, etc.

Excellent weatherproof and self-cleaning function.

SHUANGOU PVDF NANO ACP Packing

General packaging: After stacking SHUANGOU PVDF NANO ACP, the panels are packed with plastic steel strips, and the surface is covered with cardboard.

Advanced packaging: Use high-quality wood pallets (fumigation pallets if there is a special need), and use three plywood to pack into wooden boxes on four sides after stacking SHUANGOU PVDF NANO ACP.

SHUANGOU aluminum composite panel is a kind of new-fashioned composite material through serial processing, with the paint coating aluminum sheet as the surface after surface preparation and the high pressure low density polyethylene compound as the core layer, the conformation of which has excellent acid, alkali and corrosion resistance to be the most preferred material for modern curtain wall decoration and interior design.

The brand management concept of “SHUANGOU product, warranty for the quality” we offer is not only our goal, but also an obligation.

We conform to the professional standard of “novelty, aesthetics, energy conservation, environmental protection and safety” by setting up a fashionable and natural image for the brand, in providing top-ranking after-sale services and in achieving the success and reputation of the brand with sincerity and wisdom.
