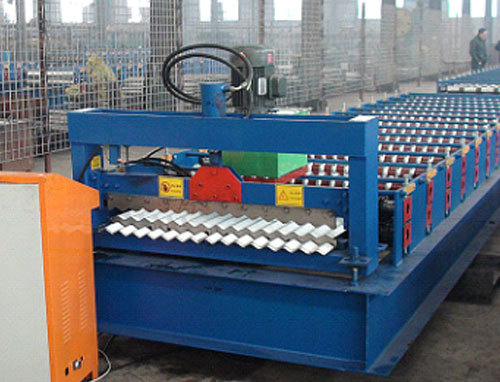

Xn25 144 3 1010 Roof Plate Forming Machine - China
price: contact company for price
Hebei Xinnuo 25-144.3-1010 roof panel forming machine, the
feeding width is 1200mm, it is the new type we design.
It is
widely used in industrial and civil buildings, such as
workshops, warehouses, engine library, hangar, gymnasium,
exhibition hall, theater room surface and wall.
It is solemn
elegant, new and beautiful, and smooth appearance, uniform
corrugated, utilization rate is high, the strength is
strong, the production high degree of automation, low cost,
very durable.
XN25-144.3-1010 automatic frequency control roll forming
machine
Units including: manual decoiler , main machine for roll
forming , post cut, hydraulic system, PLC control, stacking
1 - control system: automatic PLC frequency control , text
screen.
2 - roller steps: 14 rows
3 - main power: 4kw
4 - pump power: 4kw
5 - Diameter of roller: Φ80mm
6 - max speed: 12m/min
7 - feeding width: 1220mm
8 - the effective width: 1010mm, tolerance ±1/100
9 - thickness of the plate: 0.35-0.6mm
10 - the dimension of main roll former:
7600mm×1500mm×1450mm
11 - roller material: 45#steel, CNC-machined , heat
treatment, buffing, surface for electroplating chromium
0.05mm
Company Contact:
- Posted By: Hebei XinNuo Roll Forming Machine Co., Ltd
- Phone: 863178312992
- Address: 104 National Road, Botou, cangzhou , China
- Email:
Published date: October 29, 2013
- Business Description: Botou Xinnuo molding machine limited company is a supplier of roof plate
roll forming achine, sandwich plate roll forming machine, floor plate roll
forming machine, bending machine, shearing machine, cutting
machine, double roll forming machine, C type steel, Z steel, light steel
keel machine and so on, is a large scale technology quality
manufacturers.
