Zhuote Aluminum Grating - China

The biggest feature of aluminum grating is lightweight and high corrosion resistant capacity, beautiful appearance.

Usually aluminum gratings are used for sewage and waste treatment plants, chemical process industry, off-shore rigging drills, marine applications and more.

It can be used for walkways, mezzanine floors, pedestrian bridge walkways, stage flooring and more

Product Description Aluminum grating is manufactured from ASTM B221, 6063, or 6061 alloy, aluminum grating is available in four distinct products: type "SG" Swaged Rectangular Bar, type "SGI" Swaged "I"-bar, type "SGF" Swaged Flush-Top, and type "ADT" Dovetail Pressure Locked.

All four products are available with bearing bar spacing ranging from 19/16" (1-3/16") to 7/16" on center and with cross bars at either 4" or 2" on center.

Aluminum grating are typically shipped "mill finish" with no additional treatment.

For architectural applications or highly corrosive environments, supplemental anodizing, chemical cleaning, or powder coat finishes are available.

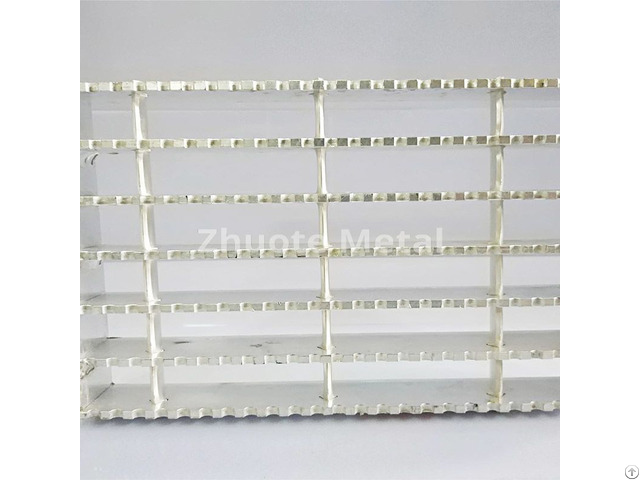

• Mill finish (no finish) • Anodized (clear, bronze, other) • Powder coating • Other 1 - SG Aluminum grating SG aluminum grating is made of aluminum plates and cross bars.

It is manufactured by inserting cross bars into pre-punched holes in the bearing bar.

The cross bars are then swaged forming a positive mechanical connection.

Bearing bars are available with standard plain or optional serrated or Algrip surfaces.

The cross bars are fully locked within the bearing bar, slightly below the top surface.

2 - SGI Aluminum grating SGI aluminum grating is made of I style aluminum plates and cross bars.

Advantages include reduced weight per square foot and the striated flanges of the "I"-bar provide enhanced skid resistance without the added cost of serration.

3 - SGF Aluminum grating SGF Swaged aluminum grating is flush-Top aluminum grating.

Manufactured with a unique, extruded cross bar that is flush with the top surface of the bearing bars, type "SGF" aluminum grating provides an enhanced walking surface for areas subject to continuous pedestrian traffic.

4 - DT style aluminum grating DT style aluminum gratings are manufactured T bar aluminum plate, have deep rectangular cross bars and are manufactured by inserting pre-punched bearing bars and cross bars into an interlocking configuration and deforming the cross bars under intense hydraulic pressure.

Zhuote aluminum bar grating Advantages: Non-toxic Lightweight Resilient & durable Corrosion resistant High strength-to-weight ratio Can be fabricated and customized Easily recycled & versatile

Company Contact:

• Posted By: Hebei Zhuote Metal Wire Mesh Products Co.,Ltd

• Phone: 18830811988

• Address: GuangAn Street, ChangAn District, Shijiazhuang , hebei , China

• Email:

• Website: https://www.zhuotemetal.com/

• Business Description: Heibei Zhuote Wire Mesh Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products.

  Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum grating.

  And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on.

  With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities.

  As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on.

  The series of wire mesh are export to the Europe market, America, Middle East, Russia, India and so on.

  We do custom manufacture and can supply a high quality OEM service for clients.

  We pride ourselves that our knowledge and experience result in us delivering high-quality products, on time--all the time.

  We will work closely with you from concept to creation of the first sample to final delivery.
