Gunite Shotcrete Machine - China

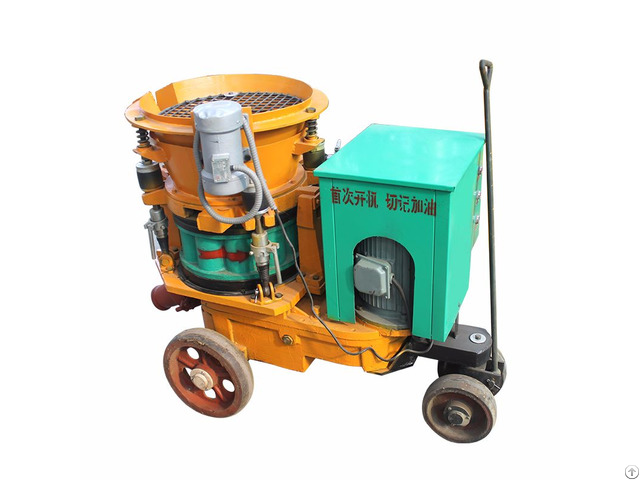

Dry Shotcrete Machine PZ Serie

Application:

This series are divided into SGP-6, PZ-7, PZ-9 and other models and are mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas.

Main Features:

1, Enlarge feeding inlet facilitates the continuity of concrete output.

Air flow can be set at a certain rate, also can be adjusted timely to ensure the continuity of the concrete and accelerator.

2, New straight-through rotor, macromolecule elastic chamber, combined and soft discharge elbow and rubber liner prevent concrete sticking and blocking in the machine.

3, Wear parts are made of the materials with unique structures.

Elastic and automatic clamping device improves tightness of the machine and reduce the wear of parts.

Technical Parameters PZ-7 Working capacity (m³ / h) 7 The max.

transmission distance (m) 30 vertical, 100 horizontal Recommended water-cement ratio ≤0.4 Accelerator dosage (%) 2-10 Max.

grain size (mm) 20 Spraying hose diameter (mm) Φ58

Air consumption (m³ / min) 10-12 Feeding height (mm) 1300

Main motor + vibration motor (kW) 7.5+0.25 Machine weight (kg) 850 Dimensions (L × W × H) (mm) 1500×800×1300 Company profile Henan Weibang Intelligent Technology Co., Ltd, located in Zhengzhou High-tech District of Henan province, China, is specialized in research and manufacture of shotcrete related equipment.

Since its establishment in 2006, it has been growing rapidly and developed a great reputation in the market.

We have obtained 33 utility model patent certificates, mine product safety sign certificates, and ISO quality management system certificate and CE

Our main business include: shotcrete manipulators, automatic feeding shotcrete machines, all-in-one of mortar mixing and grouting machines, small and medium size concrete spraying machines, grouting machines, cement grout pumps, removable dedusting water mist cannon sprayers, rebar bending machines, rock drills, welding machine etc, which are widely used in mining, railway, highway, tunneling, subway, slope and hydro-power engineers.
