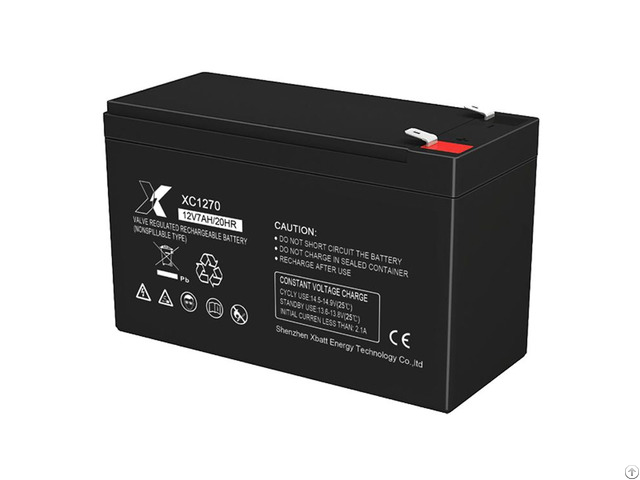

12v7ah Lead Acid Battery - China

Nominal Voltage 12V

Nominal Capacity (20HR) 7.0AH

Product Series Standby

Dimensions Length 151±2mm(5.94inches)

Width 65±2mm(2.56inches)

Container Height 95±3mm(3.73inches)

Total Height(with Terminal) 100±1mm(3.93inches)

Approx Weight 2.05 kg/4.51 lbs

Terminal F1/F2

Rated Capacity 7.2AH/0.36A (20HR, 10.80V, 25℃/77℉)

7.0AH/0.70A (10HR, 10.80V, 25℃/77℉)

5.95AH/1.19A (5HR, 10.80V, 25℃/77℉)

5.25AH/1.75A (3HR, 10.80V, 25℃/77℉)

4.50AH/4.50A (1HR, 10.20V, 25℃/77℉)

Max.

Discharge Current 105A(5s)

Internal Resistance Approx 28mΩ

Operating Temp.

Range Discharge: -15~50℃(5~122℉)

Charge: -0~40℃(32~104℉)

Storage: -15~40℃(5~104℉)

Nominal Operating Temp.

Range 25±3℃(77±5℉)

Cycle Use Initial Charging Current less than 2.1A.

Voltage 14.6V~14.9V at

25℃(77℉) Temp.

Coefficient -5mV/℃ Standby Use Initial Charging Current less than 2.1A Voltage 13.6V~13.9V

at 25℃(77℉) Temp.

Coefficient -3mV/℃ Capacity affected 40℃ 104℉ 103%

by Temperature

25℃ 77℉ 100%

0℃ 32℉ 80%

Self Discharge Xbatt series batteries may be stored for up to 6 months

at25℃(77℉) and then a freshening charge is required.

For higher temperatures the time interval will be shorter Design Life 5 years
