Crawler Excavator Construction Machine - China

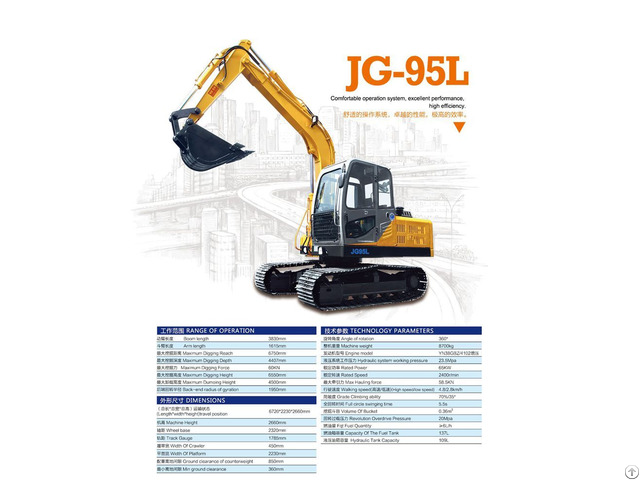

JG-95L Tech specification of crawler excavator:

Range of operation

Boom length 3830mm

Arm length 1615mm

Maximum Digging Reach 6750mm

Maximum Digging Depth 4407mm

Maximum Digging Force 60KN

Maximum Digging Height 6550mm

Maximum Dumoing Height 4500mm

Back-end radius of gyration 1950mm

Dimensions

(Length*width*height)t ravel position 6720*2230*2660mm

Machine Height 2660mm

Wheel base 2320mm

Track Gauge 1785mm

Width Of Crawler 450mm

Width Of Platform 2230mm

Ground clearance of counterweight 850mm

Min ground clearance 360mm

Tech performance and specification

Angle of rotation 360°

Machine weight 8700kg

Engine model YN38GBZ/4102

Hydraulic system working pressure 23.5Mpa

Rated Power 65KW

Rated Speed 2400r/min

Max Hauling force 58.5KN

Walking speed(High speed/low speed) 4.8/2.8km/h

Grade Climbing ability 70%/35°

Full circle swinging time 5.5s

Volume Of Bucket 0.36m3

Revolution Overdrive Pressure 20Mpa

Fqt Fuel Quantity ≥6L/h

Capacity Of The Fuel Tank 137L

Hydraulic Tank Capacity 109L

Company Contact:

• Posted By: JG Excavator

• Phone: 86-(0)21-51860525

• Address: Room23203, No.295 South Lingyan Road, Shanghai city, China, Pudong New District (浦东新区), Shanghai (上海市), China

• Email:

• Website: http://www.jgexcavator.cn

• Business Description: JG Excavator is one of famous brand Chinese engineering machinery and widely used in traffic, municipal engineering, gardens, greening, farms and irrigation works etc.

  Such as grabber loader used for sugarcane and timber lifting flexible and effective with 360°+180° full hydraulic rotate either the wheel or crawler excavator are available.

  Its super performance with high quality and cheap price benefit global users and dealers.

  1 - Mature technical with twenty years professional production on excavator;

  2 - Multifunction devices option, buy one JG excavator could be used lots of engineering.

  3 - Cheap price make you benefit more and lower labor cost, cost return would be 1-2 years;

  4 - High skilled engineer improved the technical advanced with the times, strict quality control and warranty make our machine performance superior.
