Wheel Excavator With Plunger Pump - China

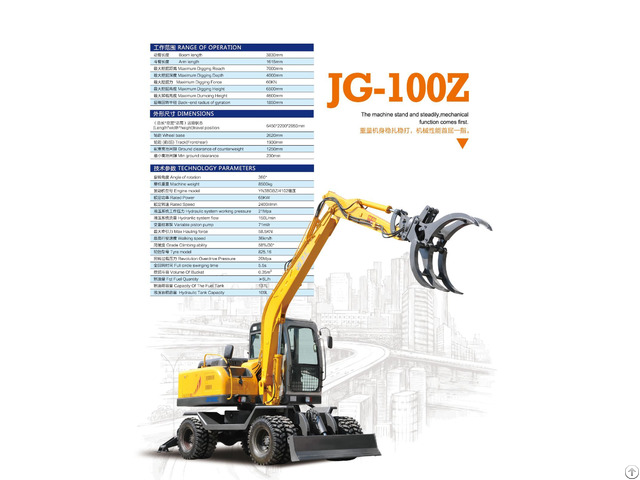

JG-100Z Tech Specification of piston excavator:

Range of operation

Boom length 3830mm

Arm length 1615mm

Maximum Digging Reach 7000mm

Maximum Digging Depth 4000mm

Maximum Digging Force 60KN

Maximum Digging Height 6500mm

Maximum Dumoing Height 4600mm

Back-end radius of gyration 1850mm

Dimensions

(Length*width*height)t ravel position 6450*2200*2950mm

Wheel base 2620mm

Track(Front/rear) 1930mm

Ground clearance of counterweight 1250mm

Min ground clearance 230mm

Tech performance and specification

Angle of rotation 360°

Machine weight 8500kg

Engine model YN38GBZ/4102

Rated Power 65KW

Rated Speed 2400r/min

Hydraulic system working pressure 21Mpa

Hydranlic system flow 150L/min

Variable piston pump 71ml/r

Max Hauling force 58.5KN

Walking speed 36km/h

Grade Climbing ability 58%/30°

Tyre model 825.16

Revolution Overdrive Pressure 20Mpa

Full circle swinging time 5.5s

Volume Of Bucket 0.35m3

Fqt Fuel Quantity ≥6L/h

Capacity Of The Fuel Tank 137L

Hydraulic Tank Capacity 109L

Company Contact:

• Posted By: JG Excavator

• Phone: 86-(0)21-51860525

• Address: Room23203, No.295 South Lingyan Road, Shanghai city, China, Pudong New District (浦东新区), Shanghai (上海市), China

• Email:

• Website: http://www.jgexcavator.cn

• Business Description: JG Excavator is one of famous brand Chinese engineering machinery and widely used in traffic, municipal engineering, gardens, greening, farms and irrigation works etc.

  Such as grabber loader used for sugarcane and timber lifting flexible and effective with 360°+180° full hydraulic rotate either the wheel or crawler excavator are available.

  Its super performance with high quality and cheap price benefit global users and dealers.

  1 - Mature technical with twenty years professional production on excavator;

  2 - Multifunction devices option, buy one JG excavator could be used lots of engineering.

  3 - Cheap price make you benefit more and lower labor cost, cost return would be 1-2 years;

  4 - High skilled engineer improved the technical advanced with the times, strict quality control and warranty make our machine performance superior.
