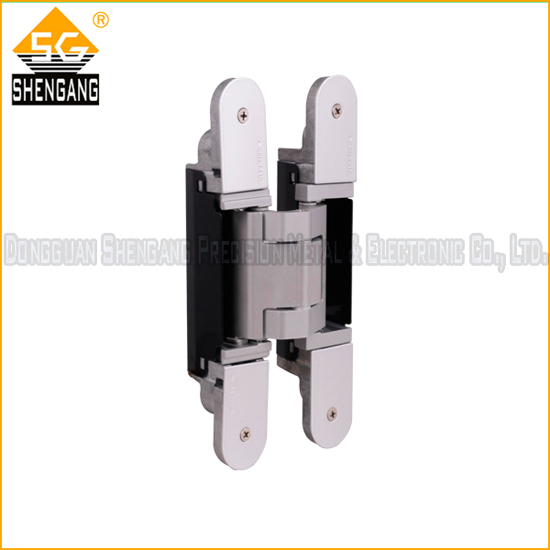

180 Degree Open Angle 3d Adjustable Hidden Hinge - China

180 degree open angle 3d adjustable hidden hinge

Type

German- type 3d adjustable concealed door hinge

Size 240* 32* 42mm

Intermediate gap 34mm

Opening angle 180 degree

Min.

door thickness 60mm

Max.

door weight 160kg/ 2 pcs

Three- way continuous adjustment parameters

Left and right: 3mm

Up and down: 3mm

Front and back: 1mm

Material

Main part: zinc alloy

Connector: aluminum alloy

Screws and axes: stainless steel

Outer connector: spring steel

Resistant discs: Nylon PA66

Sheet- iron cover: carbon steel

Material finish Zinc alloy: passivating

Aluminum alloy: CNC treatment and painting

Spring steel: Electrophoresis processing

Sheet- iron cover: stamping and painting

Finishing Barking finishing in different colors

Color Silver

Net weight 1.28kg/ pc

Suitable for wooden door, entrance door, anti- fire door, anti- theft door, swing door, metal door, aluminum door

Disregard left- hand and right- hand installation

Tested for over 200, 000 cycles , no abrasion
