For Sale 12 7mm Worm Drive Hose Clamp - China

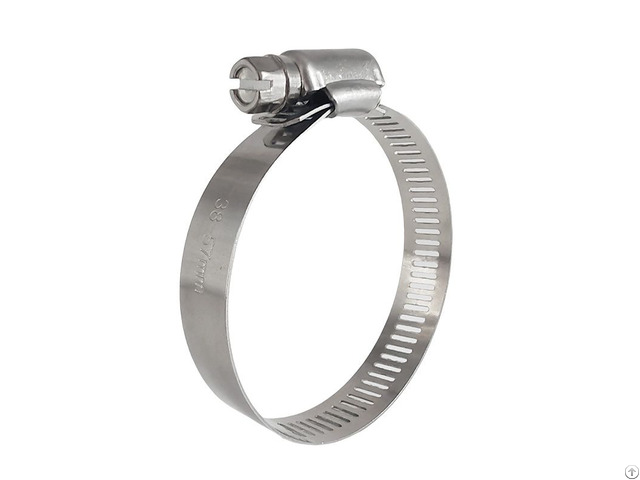

1/2″(12.7mm) Worm drive hose clamp is suitable for medium duty surfaces.

It is also called American type hose clamp, this is stainless steel with minus screw.

It has wide diameter range and various material.

Widely used in all area, from home usage to heavy industry.

Feature

Medium duty surface, has wide diameter range.

Ensure tight and leak-free seal

Band Width: 1/2″(12.7mm)

Band Thickness: 0.024″ (0.6mm)

Screw: 5/16″ (8mm) Hex slotted or cross screw head

Recommended Tightening Torque: 6.5N.

m

No burrs, protect soft hose well

Standard: SAE

Application: Widely used in all area, automotive, hydraulic, industry, marine and household.

Parameters

UD No.

SAE Size Min Dia (in) Max Dia

(in) Min Dia (mm) Max Dia (mm)

UD12A-06 06 7/16 25/32 11 20

UD12A-08 08 7/16 1 11 25

UD12A-10 10 1/2 1 1/16 13 27

UD12A-12 12 1/2 1 1/4 13 32

UD12A-16 16 11/16 1 1/2 18 38

UD12A-20 20 3/4 1 3/4 19 44

UD12A-24 24 1 2 25 51

UD12A-28 28 1 1/4 2 1/4 32 57

UD12A-32 32 1 1/2 2 1/2 38 64

UD12A-36 36 1 3/4 2 3/4 44 70

UD12A-40 40 2 3 51 76

UD12A-44 44 2 1/4 3 1/4 57 82

UD12A-48 48 2 1/2 3 1/2 64 89

UD12A-52 52 2 3/4 3 3/4 70 95

UD12A-56 56 3 4 76 101

UD12A-60 60 3 1/4 4 1/4 83 108

UD12A-64 64 3 1/2 4 1/2 89 114

UD12A-72 72 4 5 102 127

UD12A-80 80 4 1/2 5 1/2 114 140

UD12A-88 88 5 6 127 152

UD12A-96 96 5 1/2 6 1/2 140 165

UD12A-104 104 6 7 152 178

Sizes can be adjusted as per inquiry.

Material

Material Band Housing Screw

W1 Zinc plated steel Zinc plated steel Zinc plated steel

W2 AISI 201SS/304SS AISI 201SS/304SS Zinc plated steel

W2B AISI 201SS Zinc plated steel Zinc plated steel

W4 AISI 201SS/304SS AISI 201SS/304SS AISI 201SS/304SS

W5 AISI 316SS AISI 316SS AISI 316SS
