Resin Bond Internal Diamond Grinding Wheels - China

resin bond internal diamond grinding wheels:

Description of the Vresin bond internal diamond grinding wheels:

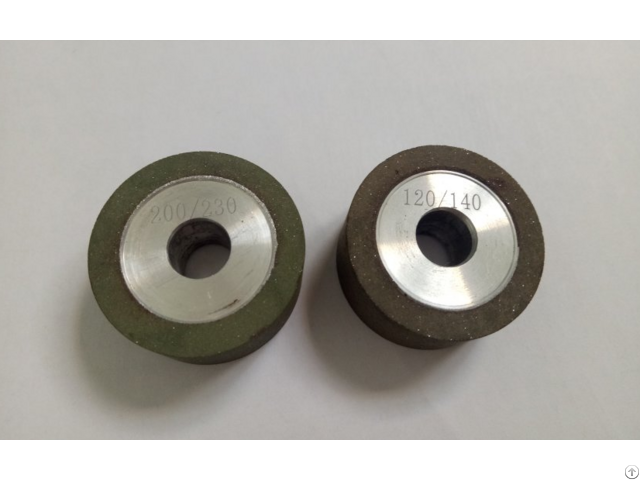

resin bond internal diamond grinding wheels are mainly used for grinding tungsten carbide and non-metal materials.

Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes, dish shapes, etc.

Feature/Benefit of the resin bond internal diamond grinding wheels:

1 - Good free-cutting

2 - Good Abrasion Resistance

3 - Both Dry and Wet Conditions

Application of the resin bond internal diamond grinding wheels:

1 - Surface grinder, 2 - PCD/PCBN tools grinding, 3 - Tungsten carbide grinding, 4 - Ceramic coatings

5 - Cylindrical grinding

Specification of resin bond internal diamond grinding wheels:

Type: 1A1, 1V1, 1A1R, 6A2, 6A9, 3A1, 9A1, 11V9, 12A2, 14A1 etc.

Diameters: 25mm-1000mm

Thickness: 5mm-250m

Grit: 50# -2000#

Hole: according to the customer’s requirement

Concentration: 150, 175, 200

to meet your requirements in every way, we need the following information

Shape and Dimension of the wheels

Grit size (Mesh, refer to Table#1)

Concentration

Bond(Resin, Vitrified, Metallic, Electroplated)

Quantity
