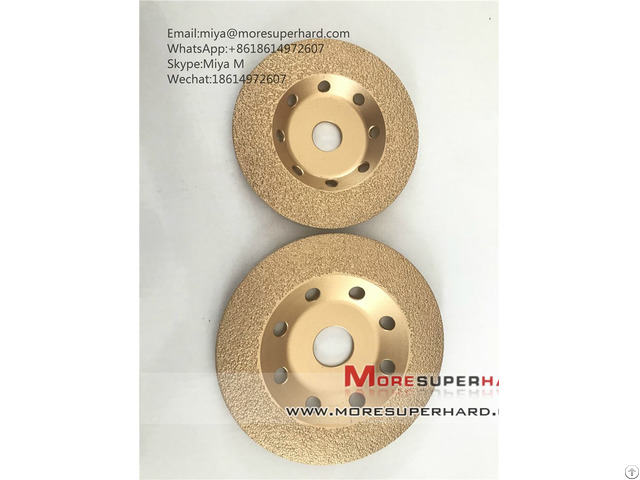

Vacuum Brazed Diamond Grinding Disc For Marble Ceramic Frp Miya - China

name: vacuum brazed diamond disc

Introduction: Our vacuum brazed diamond wheels are used on hand held grinder and used for grinding, weld cleanup, stock removal and beveling in a wide variety of industry include foundry, metal processing (weld removal and pipe beveling of all ferrous and non ferrous metals), auto parts, ship building, stone, ceramic, plastic processing, and composite materials, etc

Application: grinding marble, ceramic, FRP Diamond vacuum brazed grinding disc for grinding Marble, ceramic materials, fiber reinforced plastic, silicon carbide and artificial stone

Advantages of vacuum brazed diamond grinding disc:

* higher quality process than sintered or laser welded diamond wheel

* long life time.

Up to 40 times longer life time than Resin grinding disc

* high efficiency .

the efficiency is improved by 100% for grinding FRP slab, compare to resin bond wheel

* single layer of fully exposed diamond fused with nickel at high temperatures and sharp cutting

* no pollution, low noise, never need dressing

Specifications of vacuum brazed diamond grinding disc:

Model D (mm) H (mm) T (mm)

vacuum brazed diamond disc 100 16 / 22.3 1.5 - 3 115 16 / 22.3 1.5 - 3

Grain Size: Rough 25/30, 30/35, 35/40, Finish 50/60

Others Size And Grit Can Be Customized According To Customers' Requirement.

Tools Workpiece Lifetime Efficiency

The Sintered Disc Marble Table-board 5000cm2 26s

MDC

Vacuum Brazed Grinding Disc Marble Table-board 15000cm2 20s

Resin Grinding Disc FRP Slab 7000m2 40s

MDC

Vacuum Brazed Grinding Disc FRP Slab m2 20s ★The Lifetime of MDC Vacuum Brazed Diamond Grinding Disc is as long as Sintered Disc, and the efficiency is improved by 30% for grinding Marble Table-board.

★The Lifetime of MDC Vacuum Brazed Diamond Grinding Disc is 40 times longer than resin bond grinding disc, and the efficiency is improved by 100% for grinding FRP slab.

Diameter(Inch/mm) Segment Height(mm) Grit Size(#) Connection Bond

100 2.0-5.0 30#-40#, 50-60# 7/8“-5/8"/M14/5/8"-11 Diamond

115 2.0-5.0 30#-40#, 50-60# 7/8“-5/8"/M14/5/8"-11 Diamond

125 2.0-5.0 30#-40#, 50-60# 7/8“-5/8"/M14/5/8"-11 Diamond

150 2.0-5.0 30#-40#, 50-60# 7/8“-5/8"/M14/5/8"-11 Diamond

100 2.0-5.0 30#-40#, 50-60# 7/8“-5/8"/M14/5/8"-11 Hard Metal

115 2.0-5.0 30#-40#, 50-60# 7/8“-5/8"/M14/5/8"-11 Hard Metal

125 2.0-5.0 30#-40#, 50-60# 7/8“-5/8"/M14/5/8"-11 Hard Metal

150 2.0-5.0 30#-40#, 50-60# 7/8“-5/8"/M14/5/8"-11 Hard Metal Please don't hesitate to contact me if you have any needs: miya AT moresuperhard.

com

Our company also produces a series of diamond and CBN tools, welcome to consult and choose at any time
