1600mm Automatic Sheet Steel Coil Slitting Line - China
price: 2.00 Dollar US$

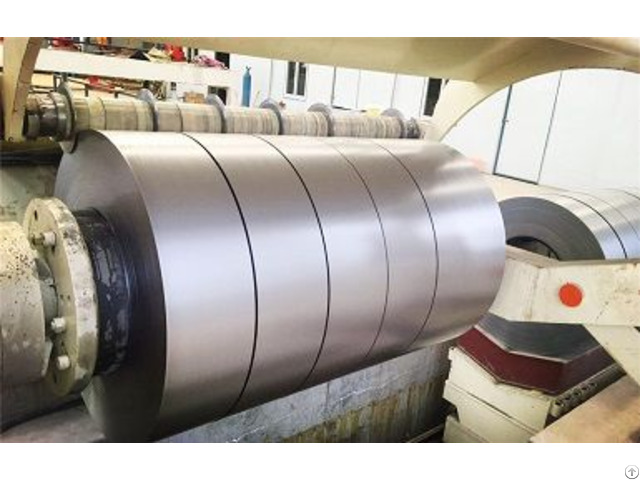

The aluminum coil slitting machine is used to the longitudinal cutting for the steel coils and rewinding the slit strips into coils.
Convenient to operate, high cutting precision and utilization factor of the material, adopts the infinitive speed.
Main technical parameters Steel coil parameters Material CRS GI Tensile strength δb≤380Mpa, δS≤260Mpa Steel thickness 0.5-3mm Steel width 500-1600(Max) Steel coil I.
D Φ508 mm Steel coil O.
D φ1600mm(Max) Steel coil weight 20T(Max) Slitter parameters knife pivot diameter Ф200 mm Knife pivot material 40Cr Blades specification Φ200mmXφ340mmX10mm Blade material 6CrW2Si Slit parameter Max slit quantity 6 pcs (3mm) 25 pcs(0.5mm) Width precision ≤±0.05mm Other parameters Power 380V/50Hz/3Ph Line speed 0-120m/min Capacity 210 Kw Whole line Dimension 24m(L)X8m(W) Operator needed 1 mechanical engineer, 2 common workers Line direction From right to left(Face to machine) Machine color White grey
Company Contact:
- Phone: 86-13584192710
- Address: South Guandimiao, Changjing Town, Jiangyin, Wuxi City, Jiangsu Province, China, Wuxi , Jiangsu , China
- Email:
Published date: March 31, 2020
- Business Description: Wuxi Bangzhou Machinery Manufacturing Co.,Ltd, located in Changjing Town of Wuxi, is a company specialized in steel coil straightening machine, slitting line, cut to length line and flat bar straightening and chamfering machine.
Our company is professional in designing and producing all kinds plates processing machines.
At present, we have own team of design, production and sales.
We can provide our customers with one-stop and high quality service.
We gained the great reputations in the field of cold rolled steel and there are many new machines exported to Southeast Asia , Europe, Latin America and Africa.
Our company has tremendous strength on technical and professional production capability.
Supply the high quality machines and professional services timely with competitive price is our companys mission.
From these years business, our machine are favored by our customers.
Welcome to your inquiry, we will do our best to build the machine you want.
