The aluminium alloy formwork system is a state-of-the-art building solution designed to form cast-in-place concrete structures with exceptional precision and efficiency.

As one of the leading innovations in modern construction, our aluminium alloy formwork system is engineered from high-quality aluminium alloy.

A.

Introduction

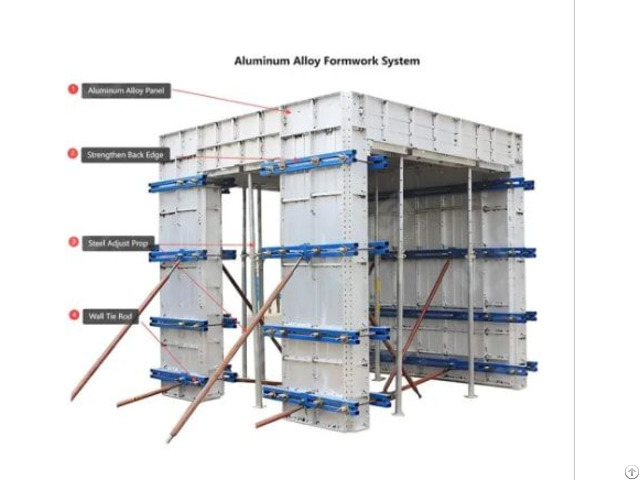

Work-sun aluminium alloy formwork system is a construction system for forming cast in place concrete structure of a Building.

Aluminium formwork is made in aluminum alloy profile what is the main material and is made into formwork through machining, welding, and other processes, which is suitable for concrete engineering.

Aluminium formwork system can be assembled flexibly according to different structural sizes.

The design and application of aluminum alloy formwork is an innovation in formwork technology.

Work-sun formwork system increases efficiency, and also produces an extraordinarily strong structure with excellent concrete finish.

B.

Advantage

a.

Flexible and efficient assembly

More than 85% of standard formwork and each formwork has an installation code.

Aluminum alloy formwork assembly method is simple and easy to operate.

Due to the formwork is light weight, workers can easily carry and assemble it.

b.

Good quality of concrete forming

High strength and precision, with few joints on the aluminum alloy formwork surface

Customized production of aluminum alloy formwork with higher dimensional accuracy

Complete the entire structure with one-time pouring

c.

Environment friendly and economical

Great recyclable value, over 35% higher than steel, beneficial for environmental development

Reduce construction waste on construction sites by nearly 30%

Longer service life, can be reused up to 200-300 times, can reduce costs by about 25%

Due to high construction efficiency, it can reduce labor costs by about 20%

Reduce expenses for renting equipment such as cranes, wall plastering, and decoration costs

d.

More safer construction environment

After assembly, it forms a whole with high stability

No need to work with a crane, greatly reducing the risk of falling objects from high altitude

Havfigh bearing capacity, and is not easily deformed

C.

Specifications&Featur es

Aluminum Alloy Features Shear-strength(Fva) 115N/ Poisson’s ratio(Va) 0.3 Yield strength(Fa) 200N/ Elasticity modulus(Ea) 70KN/

Composition Inner&Outer wall panel and corner panel Beam bottom&side panel and corner panel Slab panel∝ head and corner panel Staircase panel

Alloy Material 6061-T6

Material Type Complete extrusion

Main Welding Type Friction Stir Welding

Thickness of Panel 4mm

Thickness of Edge Frame 8mm

Height of Edge Frame 65mm or customization

Standard of Wall Panel Width 50mm- 600mm

Standard of Wall Panel Height 2400mm- 2600mm or customization

Standard of Slab Panel Size 400mm- 600mm* 1200mm or customization

Weight of Panel 24KG/㎡

Standard Prop Adjustable Range 1800mm- 3300mm or customization
