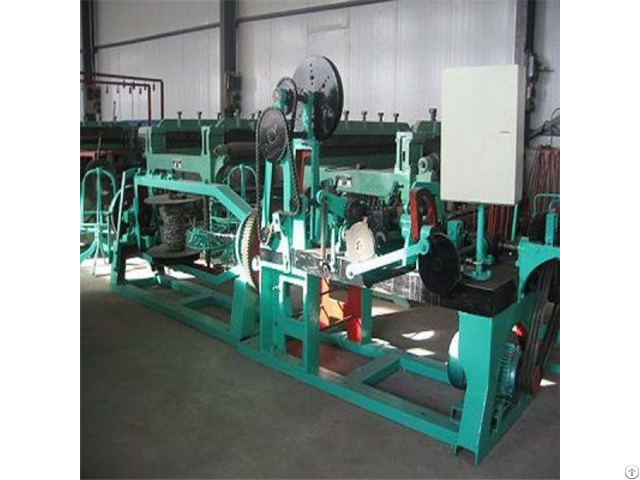

Cs A Traditional Twisted Barbed Wire Making Machine - China
price: contact company for price
1 - CS-A traditional twisted Barbed Wire Netting Machine is of horizontal design, consisting of two parts, assembled together at the middle.
It is safe and reliable in operation, capable of turning out high quality products with consistency.
2 - Barbed wire is widely used for military, national border, animal breeding, highway, railway, etc.
Machine technical parameters Name CS-A barbed wire making machine
Motor 3KW
Strand wire diameter 2.2-2.8mm
Barbed wire diameter 1.8-2.2mm
Material Galvanized Wire; PVC Coated Wire; Barb pitch spacing 76mm(3”) 102mm(4”)or as requirement
Twist 4
Machine life Over 10 years
Overall Dimension 1900mmx1300mmx980mm
Wire collection part size 1800mmx750mmx750mm
Rated output 70kg/h
Rotating Speed of Drive shaft 432r/min
Weight 1500kg Advantage
1 - Input wire straightening and easy to cut
2 - Counter to calculate the length and auto stop according to settings
3 - High efficiency, low machine malfunction
4 - Save energy and space, low noise, and 24 hours continue working
5 - Barb spacing can be adjusted by
6 - Free spare accessory parts
7 - Emergency stop button for safety
Inching button can start and stop the machine any time, more precise
Company Contact:
- Posted By: Diaozhuo Wire Mesh Equipment Company
- Phone: 86-311-12345678
- Address: Huaian Road, Shijiazhuang , Hebei , China
- Email:
- Website: http://www.diaozhuomachine.com
Published date: February 21, 2019
- Business Description: 30 years wire mesh machine factory from China, Founded in 1991，we have rich experience on wire mesh manufacturing and selling
